Assembly sequence: Notes
Torsen housing, torsen differential, transmission cover, transmission-side shift mechanism, input shaft, drive pinion and hollow shaft, removing and installing.
NOTE:
- You do not need to remove the differential when removing the components listed above.
- Removal is only necessary when adjustments have to be performed → Adjustment overview .

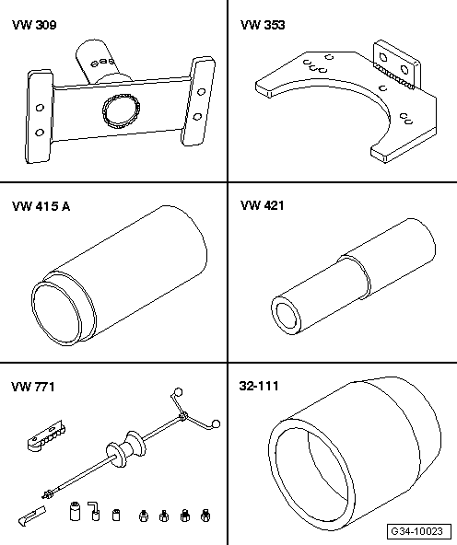

Fig 1: Identifying Special Tools - Torsen Housing, Torsen Differential, Transmission Cover, Transmission-Side Shift Mechanism, Input Shaft, Drive Pinion And Hollow Shaft, Removing And Installing (1 Of 2)
Special tools, testers and auxiliary items required
- Holding plate VW 309
- Transmission support VW 353
- Tube VW 415 A
- Tube VW 421
- Slide Hammer-Complete Set VW 771
- Driver 32 - 111

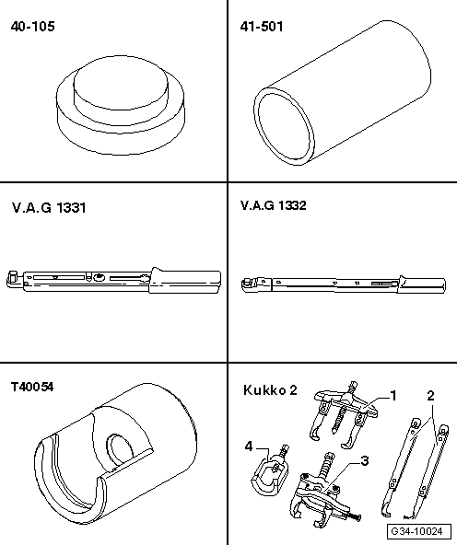

Fig 2: Identifying Special Tools - Torsen Housing, Torsen Differential, Transmission Cover, Transmission-Side Shift Mechanism, Input Shaft, Drive Pinion And Hollow Shaft, Removing And Installing (2 Of 2)
Special tools, testers and auxiliary items required
- Thrust piece 40 - 105
- Drive bushing 41 - 501
- Torque wrench V.A.G 1331
- Torque wrench V.A.G 1332
- Puller T40054
- - 1 - Two arm puller Kukko 20/10
- - 2 - Puller hooks, 250 mm long
- Feeler gauge
- Sealing paste AMV 188 001 02
- Assembly sleeve 01E 311 120
- Thread locking compound AMV 185 101 A1
- Sealing grease G 052 128 A1
- Depth gauge, e.g. Digital Depth Gauge VAS 6087
- Oil receptacle
Special tools, testers and auxiliary items required
- Socket and key T40097
