Nox Sensor Control Module Connector End View (J583, T5d)

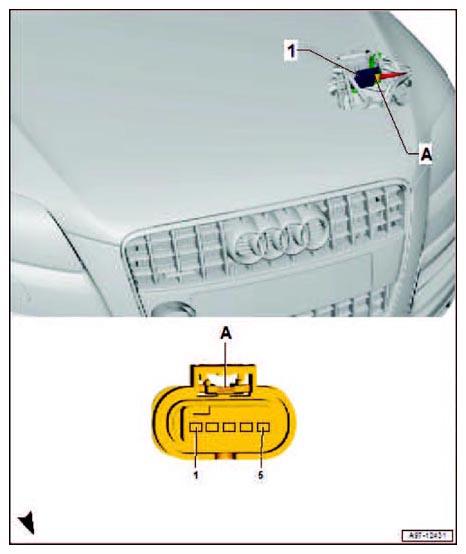

Fig 1: Nox Sensor Control Module Connector End View (J583, T5d)

Courtesy of AUDI OF AMERICA, LLC

1	NOx sensor control module -J583-
A	5-Pin Connector -T5d-

T5d	Designation
1	Terminal 30
2	Terminal 31
3	CAN-Bus, Low
4	CAN-Bus, High
5	Coding
