Front Axle, Overview

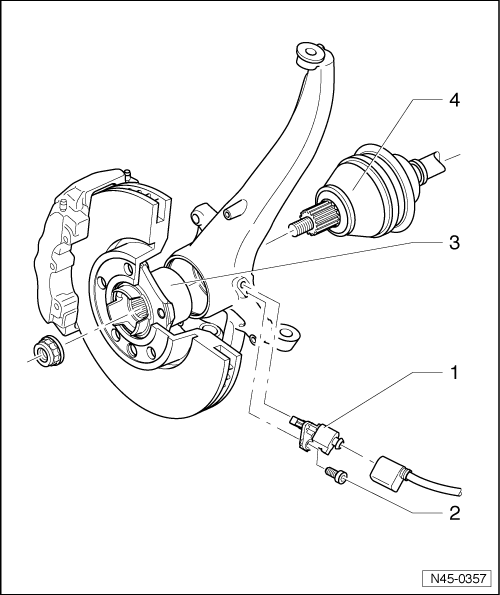

Fig 1: Front Axle, ABS Wheel Speed Sensor, Wheel Hub With Wheel Bearing Overview

Courtesy of AUDI OF AMERICA, LLC

ABS Wheel Speed Sensor
- Before inserting sensor, clean inner surface of bore hole and coat with Polycarbamide Grease G 052 142 A2
- Removing and Installing. Refer to SPEED SENSOR ON THE FRONT AXLE, REMOVING AND INSTALLING .
Hex Socket Head Bolt
- Torque specification, 8 Nm
Wheel Hub With Wheel Bearing
- The ABS sensor ring is installed in the wheel bearing.
Drive Axle
