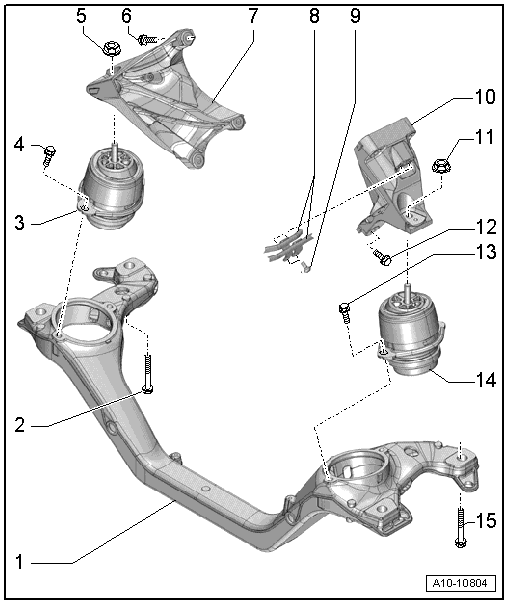

SUBFRAME Overview
WARNING: This page is about a different variant/trim than selected.
- Engine Carrier
- Bolt
- 120 Nm plus an additional 180° turn
- Replace
- Engine Mount, Right
- Removal and installation, refer to ENGINE MOUNT
- Bolt
- 60 Nm
- Nut
- 75 Nm
- Bolt
- 50 Nm plus an additional 90° turn
- Replace
- Right Engine Support
- Not Installed
- Not Installed
- Left Engine Support
- Nut
- 75 Nm
- Bolt
- 50 Nm plus an additional 90° turn
- Replace
- Bolt
- 60 Nm
- Engine Mount, Left
- Removal and installation, refer to ENGINE MOUNT
- Bolt
- 120 Nm plus an additional 180° turn
- Replace
