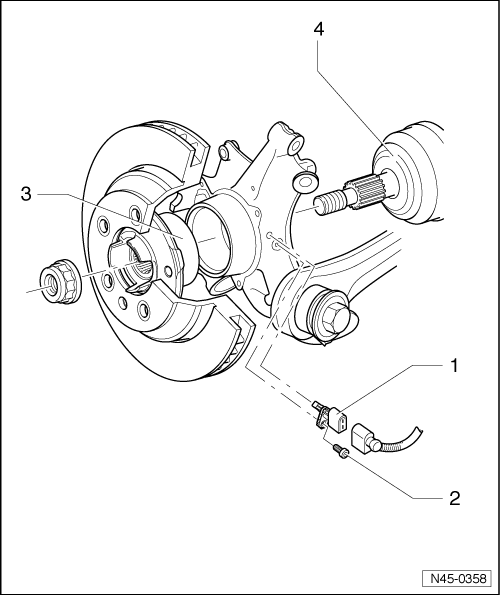

Rear Axle, Overview
- ABS Wheel Speed Sensor
- Before inserting sensor, clean inner surface of bore hole and coat with Polycarbamide Grease G 052 142 A2.
- Removing and Installing. Refer to SPEED SENSOR ON REAR AXLE, REMOVING AND INSTALLING .
- Hex Socket Bolt, 8 Nm
- Wheel Bearing/Hub Unit
- The ABS sensor ring is installed in the wheel bearing.
- Drive Axle
