Rear Peripheral Camera -R246-, REMOVING AND INSTALLING: Removing

-- Remove the rear lid trim panel, refer to REAR LID TRIM, REMOVING AND INSTALLING .

The Rearview Camera -R189- has a trailing cable pig tail -2- up to the connector inside the rear lid.

Fig 1: Identifying Screw, Retaining Plate, And Rear View Camera R189

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -1-.

-- Remove retaining plate -3-.

The Rearview Camera -R189- is secured in the cover strip.

-- Remove the Rearview Camera -R189- with a suitable tool.

-- Disconnect connectors -1- and -2- and remove Rearview Camera -R189- from rear lid.

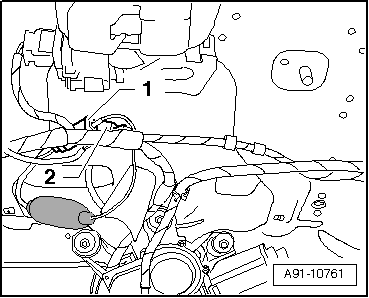

Fig 2: Identifying Connectors -1- And -2-

Courtesy of AUDI OF AMERICA, LLC
