Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing

It is not necessary to remove the bumper cover. The Front Peripheral Camera -R243- is accessible from above when the lock carrier cover is removed.

-- Remove the lock carrier cover, refer to FRONT BUMPER, REMOVING AND INSTALLING .

Removing the top bolt on the bumper cover makes it easier to reach, refer to FRONT BUMPER, REMOVING AND INSTALLING -2-.

-- Remove the screws -1- from the Front Peripheral Camera -R243- and bracket -3-.

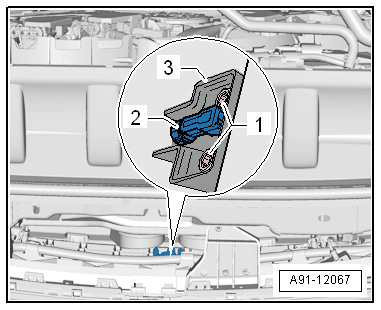

Fig 1: Front Periphereal Camera Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Front Peripheral Camera -R243- and bracket -3- from the bumper cover and disconnect the connector -2-.
