Steering Column, Handling And Transporting

Correct Handling and Transport of Steering Column

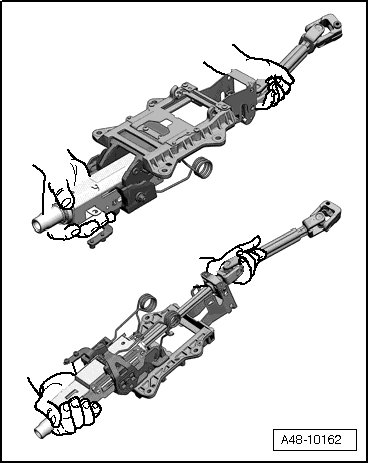

Fig 1: Correct Handling And Transport Of Steering Column

Courtesy of AUDI OF AMERICA, LLC

• Transport steering column with two hands.
• Hold steering column at upper steering rod tube and in area of upper universal joint.

Incorrect Handling of Steering Column

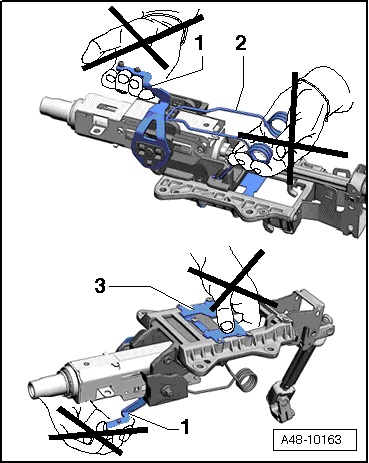

Fig 2: Identifying Incorrect Handling Of Steering Column (1 Of 2)

Courtesy of AUDI OF AMERICA, LLC

Transporting at the following components leads to pre-damage to steering column:

1. Clamping lever
2. Weight compensation springs
3. Deformation element

Damage to universal joint bushings on lower steering column bushing due to:

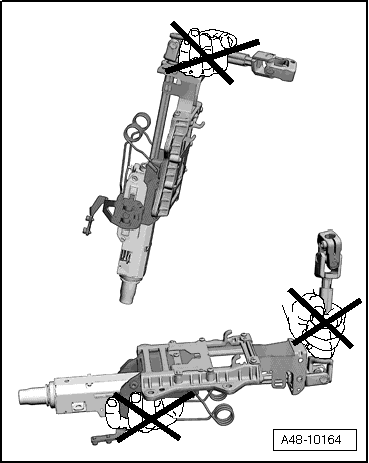

Fig 3: Identifying Incorrect Handling Of Steering Column (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

• Holding and carrying the steering column with a hand on the connecting shaft.
• Bending joints more than 90°.
