Abs Components, Front Axle

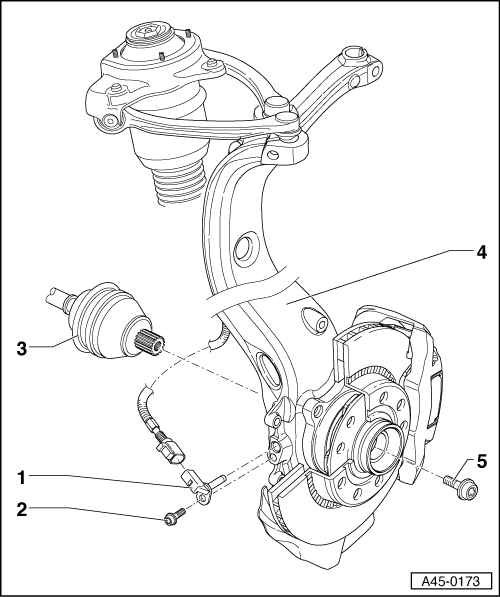

Fig 1: ABS System Components On Front Axle, Removing And Installing Overview

Courtesy of AUDI OF AMERICA, LLC

1 -Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47-
- Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide GreaseG 000 650
- Removing and installing. SPEED SENSOR ON THE FRONT AXLE
2 -Bolt
- 18 Nm
3 -Drive Axle
4 -Wheel Hub With Wheel Bearing
5 -Bolt
- Always replace, refer to OVERVIEW - SUBFRAME, ENGINE MOUNT BRACKET, STABILIZER BAR, CROSSMEMBER AND COUPLING ROD .
