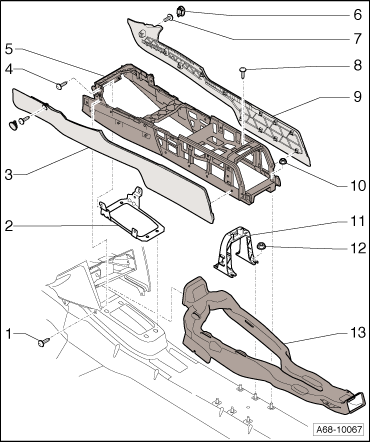

Center Console Frame Component Overview
- Bolt
3 Nm
- Mounting Bracket
- Center Console Left Side Trim
- Removing and installing, refer to CENTER CONSOLE SIDE TRIM .
- Bolt
3 Nm
- Center Console Frame
- Removing and installing, refer to CENTER CONSOLE FRAME .
- Cover
- Bolt
3 Nm
- Bolt
3 Nm
- Center Console Right Side Trim
- Removing and installing, refer to CENTER CONSOLE SIDE TRIM .
- Bolt
4 Nm
- Front Center Armrest Support Base
- Removing and installing, refer to FRONT CENTER ARMREST SUPPORT BASE .
- Bolt
25 Nm
- Air Duct
- In center console.
- Removing and installing, refer to AIR DUCT .
