CLIMATRONIC Control Module A/C Control Head: Installing

-- Check the clips on top of Climatronic Control Module -J255-, if there should be different clips -A- on the new A/C control head to be installed than those on the removed A/C control head (for example clips -B- instead of -C-), remove these clips using a small screwdriver -D- and replace them with the correct version.

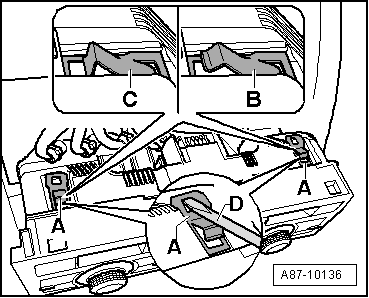

Fig 1: Identifying Clips For Climatronic Control Module J255

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Only install the Climatronic Control Module -J255- A/C control head on which clips -C- are installed (form fitting clips with an angle of approximately 65°), when slots -D- are present in instrument panel center section (without this slot, the A/C control head can only then be removed again with the instrument panel center section removed, the clips cannot be disengaged on a instrument panel center section without slot).

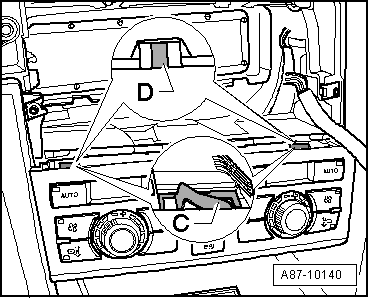

Fig 2: Identifying Clips And Slot For Climatronic Control Module J255

Courtesy of AUDI OF AMERICA, LLC

Install the Climatronic Control Module -J255- A/C control head (install in reverse order).

-- Check the DTC memory for the Climatronic Control Module -J255- A/C control head and erase any faults displayed if necessary.

-- Perform the basic setting, coding, adaptation and output diagnostic test mode on the A/C system.
