Component location SIMOS Control Module J361

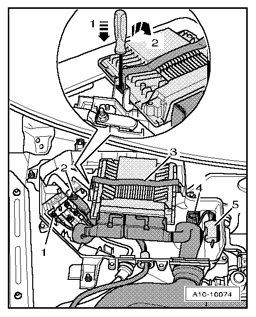

Fig 1: Prying Off Retaining Clip With Screwdriver And Removing ECM From E-Box
GW00021978Courtesy of VOLKSWAGEN UNITED STATES, INC.
