Accelerator Pedal Module Version 1 Assembly Overview

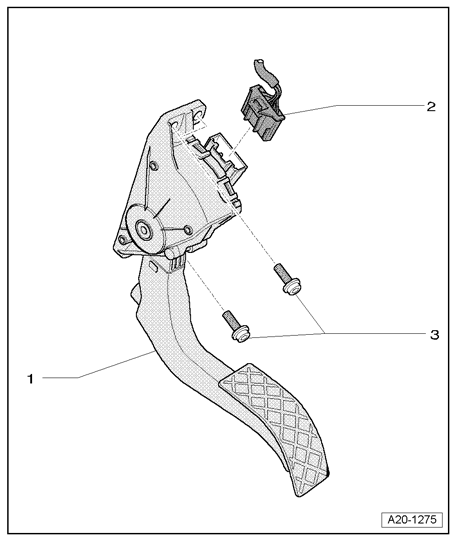

Fig 1: Accelerator Pedal Module Version 1 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Accelerator Pedal Module
   • With Throttle Position (TP) Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
   • Removing and installing, refer to Accelerator Pedal Module, Version 1 .
2. Electrical Harness Connector
3. Bolt, 9 Nm
