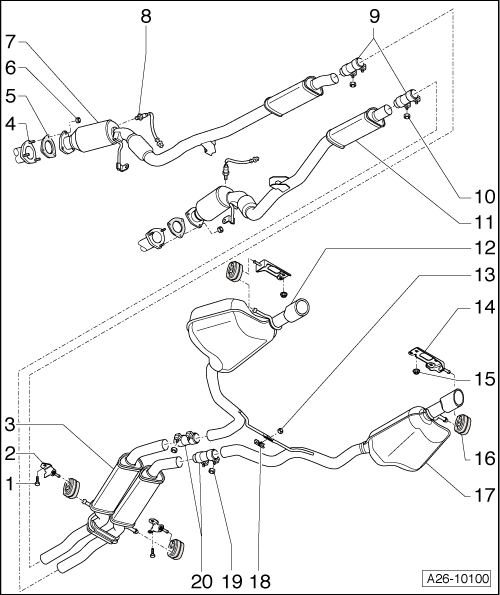

Exhaust System, Vehicles With Front Wheel Drive Assembly Overview

1. 23 Nm
2. Suspended mount
   • Replace if damaged
3. Center muffler
   • Original equipment as one unit with rear muffler. For repairs, replace each separately.
   • Separating point, refer to CENTER MUFFLER AND REAR MUFFLER, SEPARATING , see Figure.
   • Install exhaust system free of stress, refer to EXHAUST SYSTEM, INSTALLING
4. Exhaust Manifold
   • Removing and installing, refer to: Left LEFT EXHAUST MANIFOLD , for the right RIGHT EXHAUST MANIFOLD
5. Gasket
   • Replace
6. 23 Nm
   • Replace
7. Front exhaust pipe with catalytic converter and front muffler
   • For cylinder bank 2 (left)
   • With decoupling element; do not bend the decoupling element more than 10° or it may be damaged
   • Protect from shocks and impact stress
   • Removing and installing, refer to LEFT FRONT EXHAUST PIPE WITH CATALYTIC CONVERTER
   • Individual components of mounting: Vehicles with manual transmission, refer to Fig 4, vehicles with multitronic transmission, refer to Fig 5.
   • Install exhaust system free of stress, refer to EXHAUST SYSTEM, INSTALLING .
8. Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC)
   • Removing and installing, refer to Oxygen Sensor (O2S) after Three Way Catalytic Converter (TWC) -G130- Bank 1 Right
9. Front clamping sleeves
   • Installed location, refer to Fig 2
   • Before tightening, align exhaust system so that it is tension-free, refer to EXHAUST SYSTEM, INSTALLING
   • Tighten threaded connections evenly.
10. 23 Nm
11. Front exhaust pipe with catalytic converter and front muffler
    • For cylinder bank 1 (right)
    • With decoupling element; do not bend the decoupling element more than 10° or it may be damaged
    • Protect from shocks and impact stress
    • Removing and installing, refer to RIGHT EXHAUST PIPE WITH CATALYTIC CONVERTER
    • Individual components of mounting, refer to: Fig 6 and Fig 7
    • Install exhaust system free of stress, refer to EXHAUST SYSTEM, INSTALLING
12. Rear muffler with tail pipe
    • Left side of vehicle
    • Original equipment as one unit with center muffler
    • In case of repairs, center muffler end muffler and tailpipe should be replaced individually
    • Separating point center muffler/rear muffler, refer to CENTER MUFFLER AND REAR MUFFLER, SEPARATING , see Figure.
    • For the rear muffler/tail pipe separating point, refer to TAIL PIPE
    • Install exhaust system free of stress, refer to EXHAUST SYSTEM, INSTALLING
13. 23 Nm
    • Replace
14. Suspended mount
15. 23 Nm
16. Suspended mount
    • Replace if damaged
17. Rear muffler with tail pipe
    • Right side of vehicle
    • Original equipment as one unit with center muffler
    • In case of repairs, center muffler end muffler and tailpipe should be replaced individually
    • Separating point center muffler/rear muffler, refer to CENTER MUFFLER AND REAR MUFFLER, SEPARATING , see Figure.
    • for the rear muffler/tail pipe separating point, refer to TAIL PIPE
    • Install exhaust system free of stress, refer to EXHAUST SYSTEM, INSTALLING
18. Bracket
19. 23 Nm

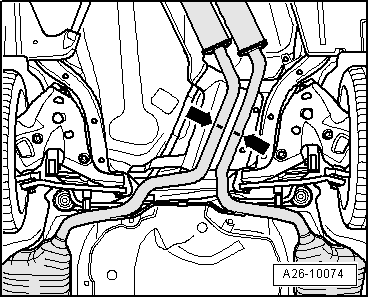

20. Rear clamping sleeves
    • For individual replacement of center and rear mufflers
    • Position clamping sleeve centrally to separation point
    • Installed location, refer to Fig 3
    • Before tightening, align exhaust system so that it is tension-free, refer to EXHAUST SYSTEM, INSTALLING .
    • Tighten threaded connections evenly.

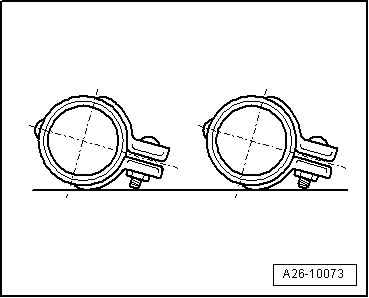

-- Install double clamps so that the bolt ends do not project over lower edge of double clamp.

• Threaded connections point toward the right.

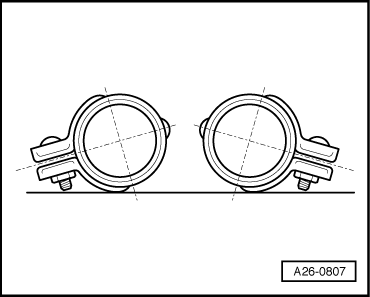

-- Install double clamps so that the bolt ends do not project over lower edge of double clamp.

• Threaded connections point toward outside.

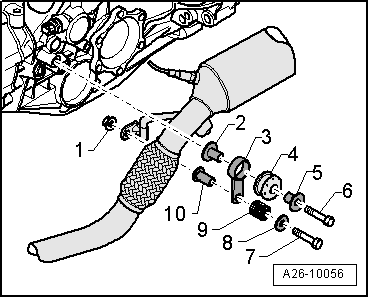

1. Bolt
2. Washer
3. Spring
4. Spacer sleeve
5. Nut - 23 Nm
6. Spacer sleeve
7. Tab
8. Buffer
9. Spacer sleeve
10. Bolt - 23 Nm

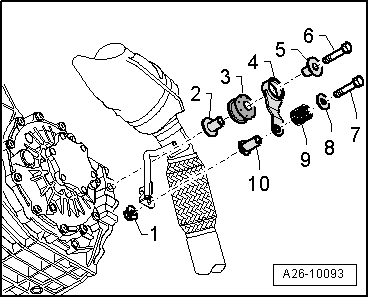

1. Nut - 23 Nm
2. Spacer sleeve
3. Buffer
4. Spacer sleeve
5. Bolt
6. Bolt - 23 Nm
7. Bolt
8. Washer
9. Spring
10. Spacer sleeve

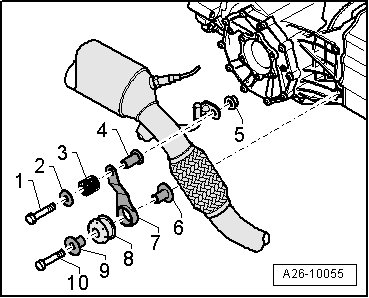

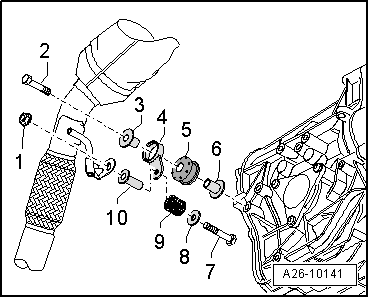

1. Nut - 23 Nm
2. Spacer sleeve
3. Tab
4. Buffer
5. Spacer sleeve
6. Bolt - 23 Nm
7. Bolt
8. Washer
9. Spring
10. Spacer sleeve

1. Nut - 23 Nm
2. Bolt - 23 Nm
3. Spacer sleeve
4. Tab
5. Buffer
6. Spacer sleeve
7. Bolt
8. Washer
9. Spring
10. Spacer sleeve

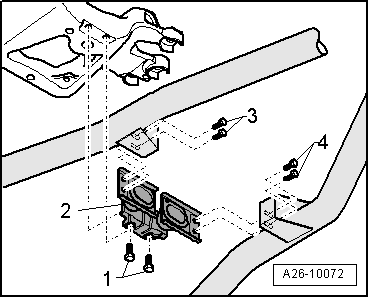

1. 23 Nm
2. Bracket
3. 23 Nm
4. 23 Nm
