Vehicle Diagnostic, Testing And Information System, Connecting And Selecting Function

Special tools and workshop equipment required

WARNING:

During a test drive, the testing and measuring equipment must always be secured on the back seat.
These devices may be operated only by a passenger during a test drive.

-- Connect the Vehicle Diagnosis Tester diagnostic cable connector to diagnostic connection.

Fig 1: Connecting Diagnostic Cable VAS 5051/5A To Diagnostic Connector

Courtesy of AUDI OF AMERICA, LLC

-- Switch on the Vehicle Diagnosis Tester -arrow-.

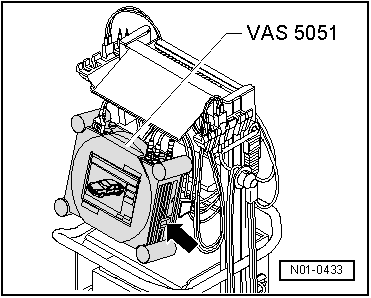

Fig 2: Identifying Volkswagen Tester VAS 5051, On Switch

Courtesy of AUDI OF AMERICA, LLC

The Vehicle Diagnosis Tester is ready for use when a picture (photo) of a vehicle is displayed.

-- Turn on the ignition.

-- Touch the field (the button) on the screen: Guided Fault Finding.

-- Select in succession:

-- Confirm data entered.

Wait until the Vehicle Diagnosis Tester has checked all control modules in vehicle.

-- Press the Go to button and select "Function/component selection".

-- Select "Suspension"

-- Select "Brake system"

-- Select desired function on display.
