Central Locking: Sedan

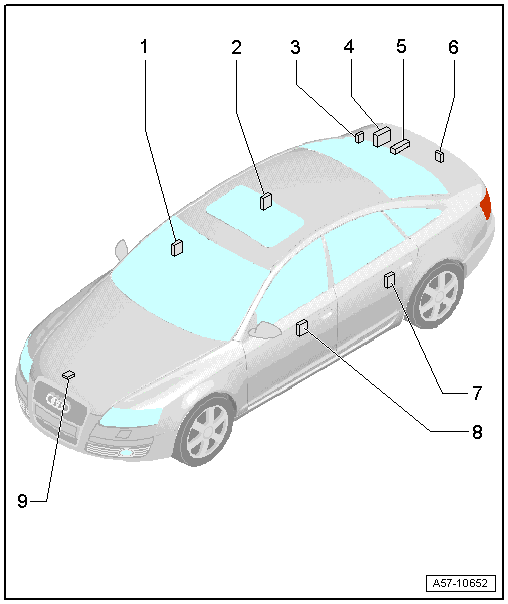

Fig 1: Central Lockinge Components Location (Sedan)

Courtesy of AUDI OF AMERICA, LLC

Right Front Door Control Module -J387-
- Removing and installing. Refer to Figure.
Right Rear Door Control Module -J389-
- Removing and installing. Refer to Figure.
Fuel Filler Door Unlock Motor -V155-
- Removing. Refer to Fuel Filler Door Unlock Motor -V155-, Removing .
Comfort System Central Control Module -J393-
- Component location, in right rear side panel. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393- .
Vehicle Positioning System Interface Control Module -J843-
- Removing. Refer to VEHICLE POSITION SYSTEM INTERFACE CONTROL MODULE -J843-, REMOVING ..
Rear Lid Unlock Motor -V139-
- Removing and installing. Refer to Figure.
Left Rear Door Control Module -J388-
- Removing and installing. Refer to Figure.
Driver Door Control Module -J386-
- Removing and installing. Refer to Figure.
Engine Hood Contact Switch -F266-
- Component location in lock carrier
