Speech Control System Overview Through August 2008

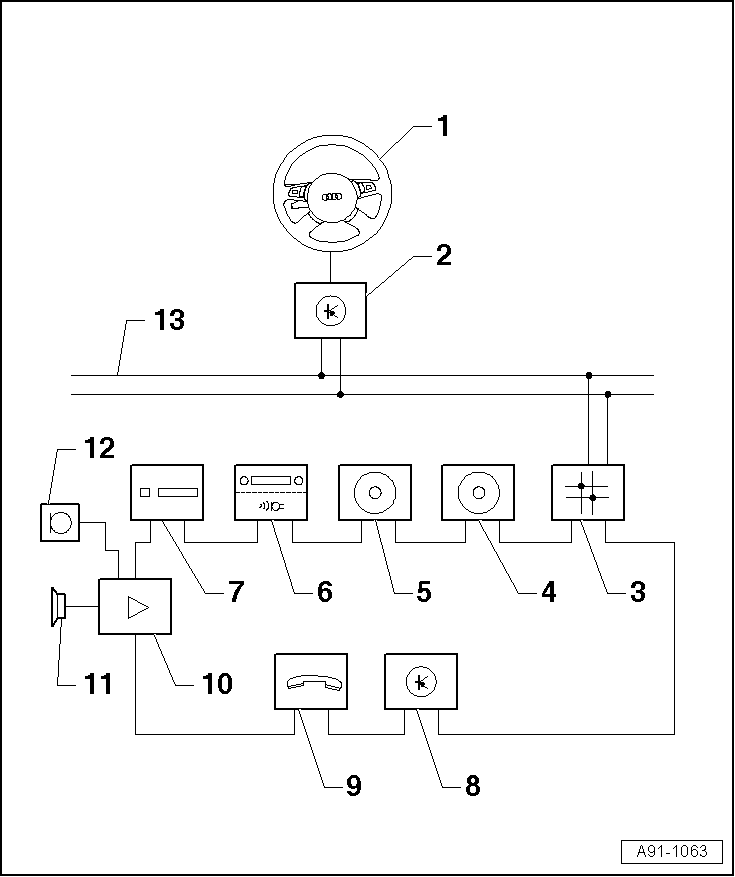

Fig 1: Voice Recognition System - MMI, Layout
GWWA91-1063Courtesy of AUDI OF AMERICA, LLC
  1. Multifunction Steering Wheel
  2. Steering Column Electronic Systems Control Module -J527-
    • On steering column at steering column switches
  3. Data Bus On Board Diagnostic Interface -J533-
    • Behind glove compartment
  4. Media Player, Position 1 -R118-
    • At left in glove compartment
  5. Media Player, Position 2 -R119-
    • In right of glove compartment
  6. Radio -R-
  7. Navigation System with CD Drive Control Module -J401-
    • Behind luggage compartment left side trim
  8. Front Information Display Control Head Control Module -J523-
    • Behind glove compartment
  9. Telephone Transceiver -R36-
    • In front of left front seat under floor covering
  10. Digital Sound System Control Module -J525-
    • Behind luggage compartment left side trim
  11. Sound Systems
  12. Microphone Unit in Front Roof Module -R164-
  13. CAN Bus (Comfort)
