Telematics system, layout
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

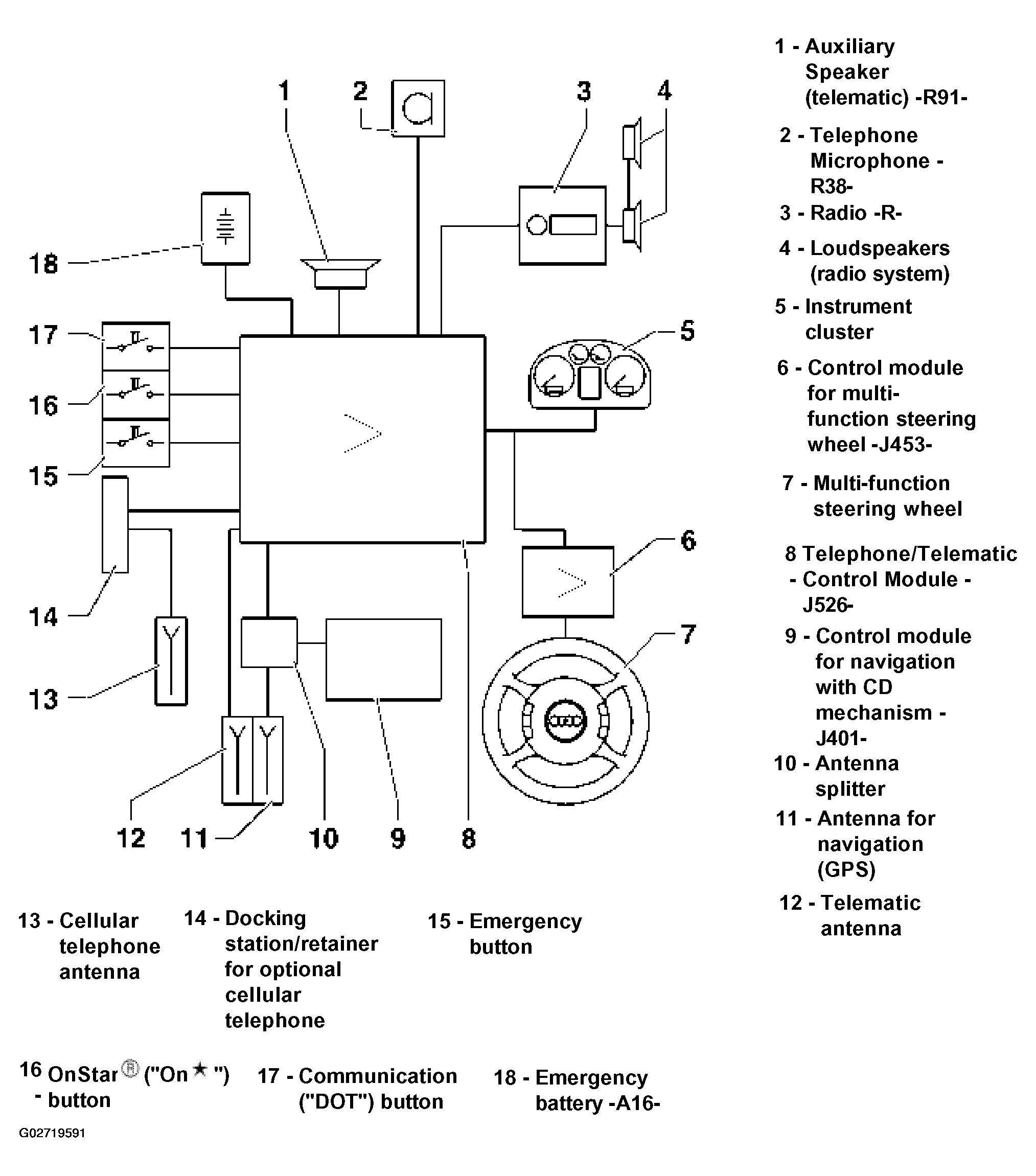

The following list refers to Fig 1.
- Auxiliary Speaker (telematic) -R91-
- In right B-pillar
- Telephone Microphone -R38-
- In front interior light module
- Radio -R-
- Loudspeakers (radio system)
- In front door panels
- Instrument cluster
- Control module for multifunction steering wheel -J453-
- In 13-position relay carrier below driver's side storage compartment
- Multi-function steering wheel
- Telephone/Telematic Control Module -J526-
- In front passenger's footwell
- Control module for navigation with CD mechanism -J401-
- In left rear luggage compartment storage box
- Antenna splitter
- In left rear luggage compartment storage box
- Antenna for navigation (GPS)
- On roof
- Integral with telematic antenna
- Telematic antenna
- On roof
- Integral with GPS antenna
- Cellular telephone antenna
- In rear bumper
- Docking station/retainer for optional cellular telephone
- In center console
- Emergency button
- In Telematic Control Head -E264-
- OnStar® ("On star") button
- In Telematic Control Head -E264-
- Communication ("DOT") button
- In Telematic Control Head -E264-
- Emergency battery -A16-
- In front passenger's footwell
