Telematic system, component overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

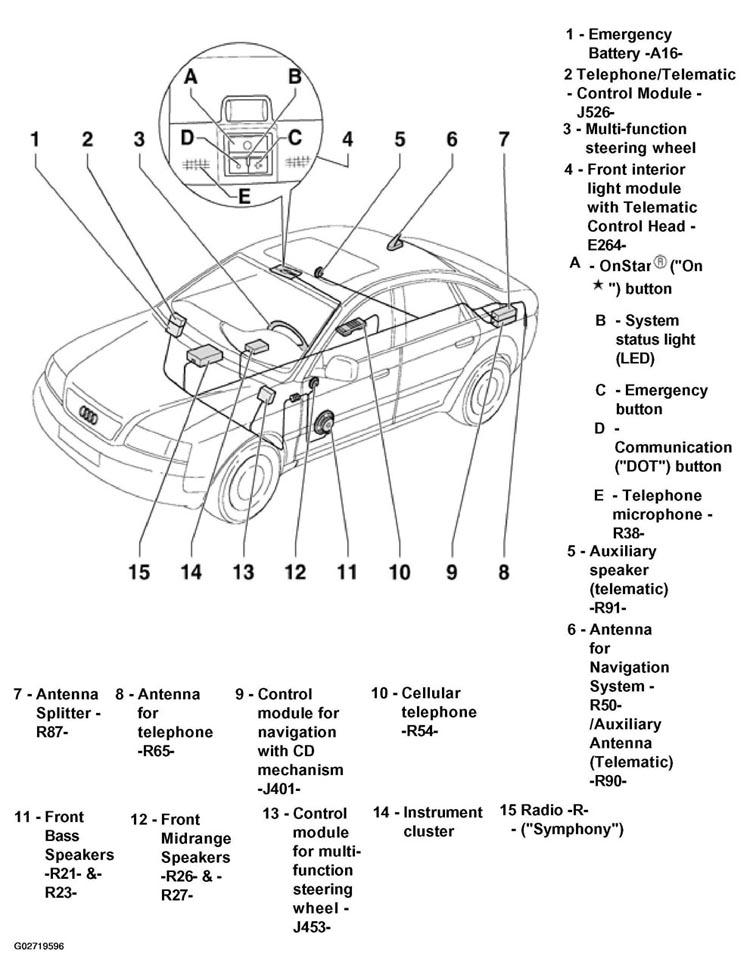

The following list refers to Fig 1.
- Emergency Battery -A16-
- On Telephone/Telematic Control Module -J526- in front passenger's footwell
- Removing and installing. See EMERGENCY BATTERY, REMOVING AND INSTALLING .
- Telephone/Telematic Control Module -J526-
- In front passenger's footwell
- Removing and installing. See TELEPHONE/TELEMATIC CONTROL MODULE -J526-, REMOVING AND INSTALLING .
- Multi-function steering wheel
- Front interior light module with Telematic Control Head -E264-
- In front headliner
- Removing and installing. See TELEMATIC CONTROL HEAD -E264-, REMOVING AND INSTALLING .
- OnStar® ("On star") button
- System status light (LED)
- Emergency button
- Communication ("DOT") button
- Telephone microphone -R38-
- Auxiliary speaker (telematic) -R91-
- In lower right B-pillar trim
- Removing and installing. See AUXILIARY SPEAKER (TELEMATIC) -R91-, REMOVING AND INSTALLING .
- Antenna for Navigation System -R50-/Auxiliary Antenna (Telematic) -R90-
- On roof
- Removing and installing. See ROOF ANTENNA (SEDAN) FROM M.Y. 2002, REMOVING AND INSTALLING .
- Antenna Splitter -R87-
- In left rear luggage compartment storage box
- Removing and installing. See ANTENNA SPLITTER -R87- (SEDAN), REMOVING AND INSTALLING .
- Antenna for telephone -R65-
- In rear bumper
- Removing and installing. See ANTENNA FOR TELEPHONE -R65-, REMOVING AND INSTALLING .
- Control module for navigation with CD mechanism -J401-
- In left rear luggage compartment storage box
- Removing and installing. See CONTROL MODULE FOR NAVIGATION WITH CD MECHANISM -J401-, REMOVING AND INSTALLING .
- Cellular telephone -R54-
- Optional equipment (only used in conjunction with telematics system)
- In center console
- Telephone system preparation, layout. See DIGITAL CELLULAR TELEPHONE (PREPARATION) FROM M.Y. 2002, LAYOUT .
- Cellular telephone docking station, removing and installing. See DOCKING STATION/RETAINER (FOR CELLULAR TELEPHONE -R54-), REMOVING AND INSTALLING .
- Front Bass Speakers -R21- & -R23-
- In lower front door panels
- Removing and installing. See FRONT BASS SPEAKERS -R21 & -R23-, REAR BASS SPEAKERS -R15- & -R17-, REMOVING AND INSTALLING .
- Front Midrange Speakers -R26- & -R27-
- In upper front door panels
- Removing and installing. See FRONT MIDRANGE SPEAKERS -R26- & -R27-, REAR MIDRANGE SPEAKERS -R34 & -R35-, REMOVING AND INSTALLING .
- Control module for multifunction steering wheel -J453-
- On 13-position relay carrier below drivers side storage compartment
- Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
- Instrument cluster
- Removing and installing
See INSTRUMENT CLUSTER, REMOVING AND INSTALLING for up to m.y. 1999 and INSTRUMENT CLUSTER, REMOVING AND INSTALLING for m.y. 2000 and up.
- Radio -R- ("Symphony)"
- In center instrument panel
- Removing and installing. See "SYMPHONY" RADIO, REMOVING AND INSTALLING .
