Diagnostic Trouble Code (DTC) table
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Listed in the following in ascending order of 5-digit DTCs are all the malfunctions which can be detected by the ultrasonic sensor control module and printed out on V.A.G 1551.
- The DTC only appears on the printout.
- Before replacing components found to be faulty, use wiring diagram to check wiring and connectors to these components as well as Ground connections.
- System is to be primed and deactivated once on completion of repair work. Then use V.A.G 1551 Scan Tool (ST) to check DTC Memory again and erase it.
- All static and sporadic DTCs are stored in the DTC Memory: Malfunctions are recognized as being static as soon as they occur. If a malfunction is then no longer present, it is stored as being sporadic and "ISP" appears on the right of the display.
- After priming, all malfunctions present are set to sporadic and only stored as being static if they are still present after checking.
- Sporadic malfunctions which do not re-occur in the course of 50 priming cycles are erased.
NOTE:

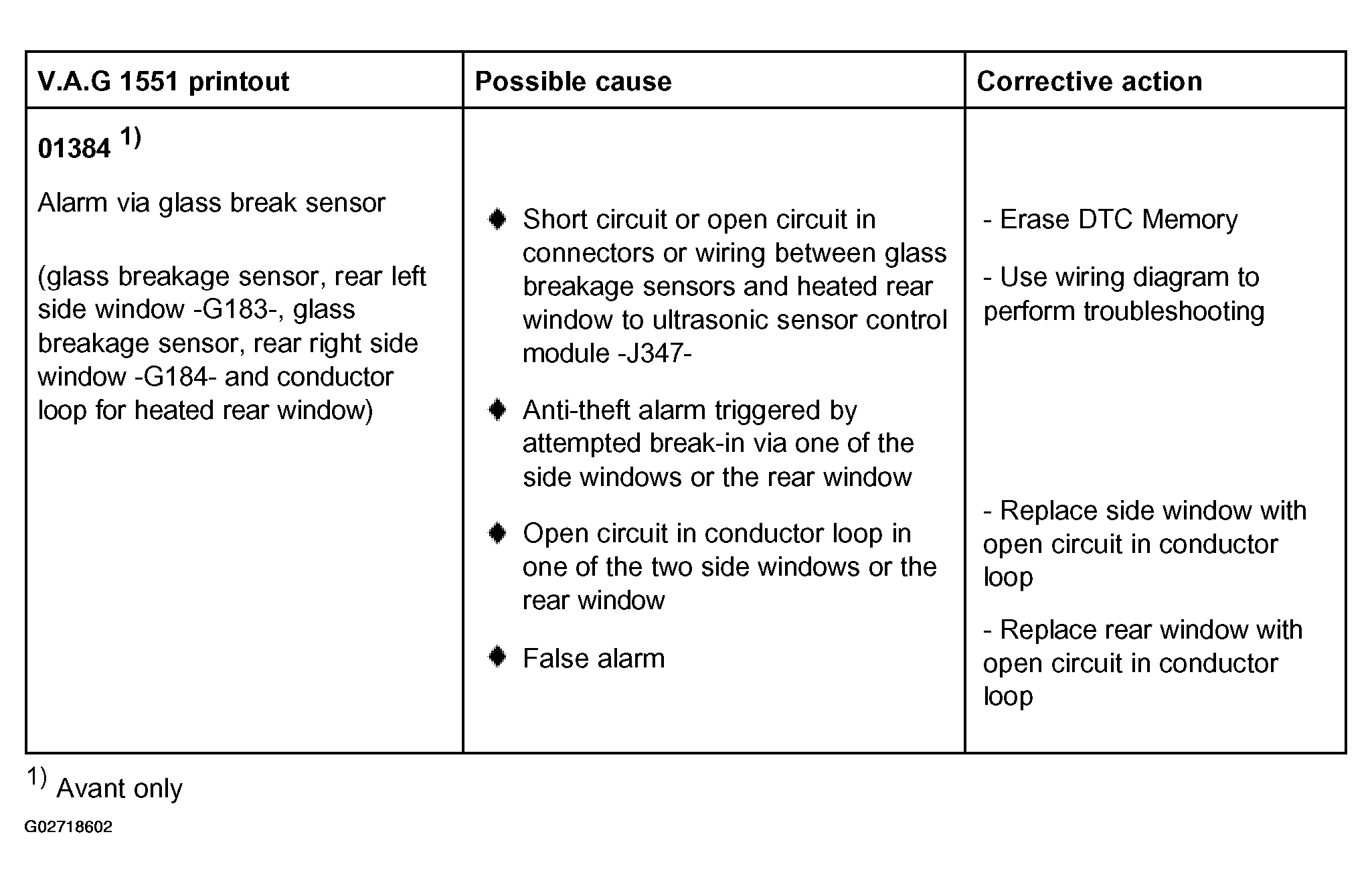

In Fig 1
refer to:
- ERASE DTC MEMORY (FUNCTION 05) for erasing DTC memory
- INTERIOR MONITOR, CHECKING OPERATION for checking operation
- ADAPTATION (FUNCTION 10) for adjusting sensitivity of sensors
NOTE:

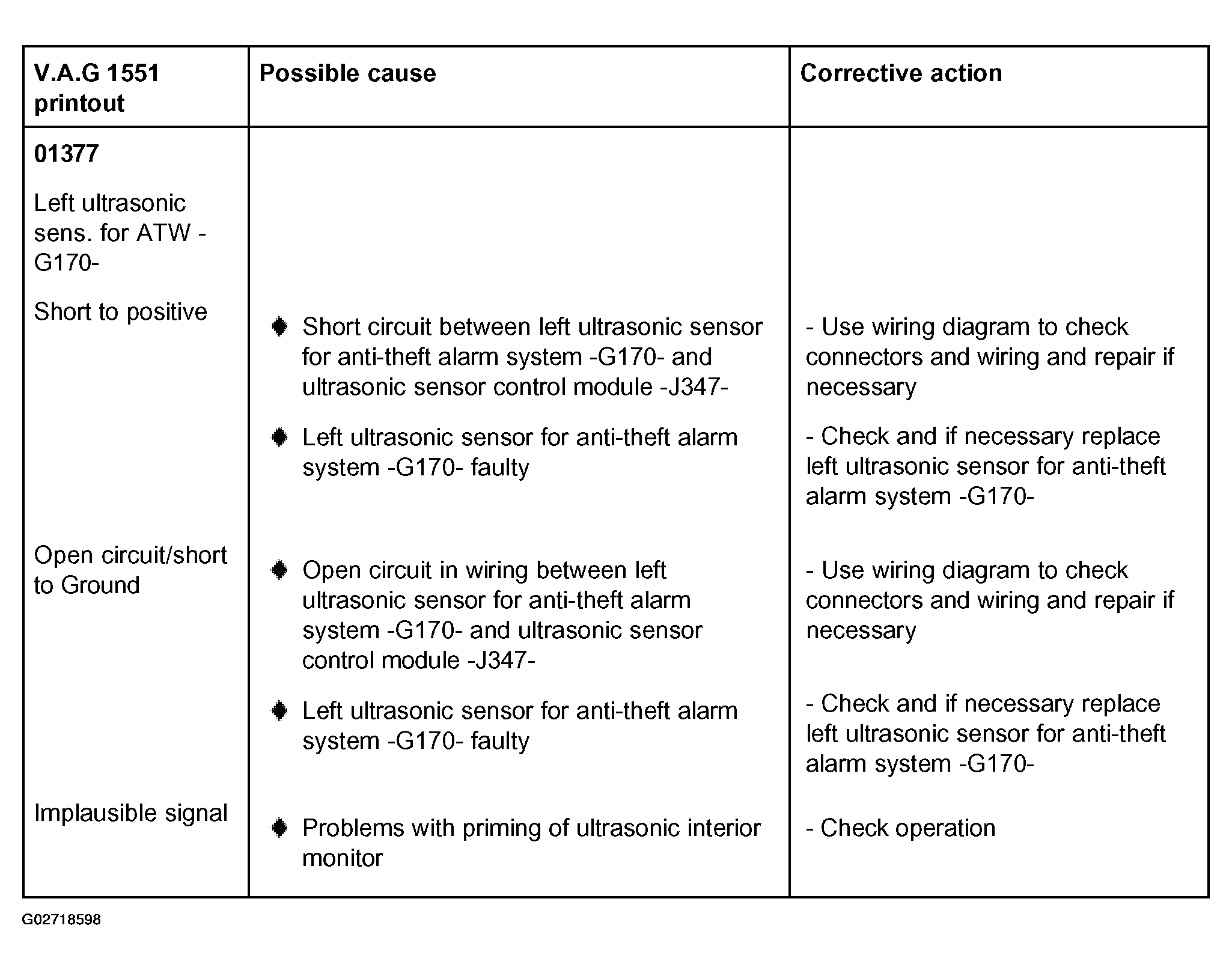

In Fig 2
refer to:
- INTERIOR MONITOR, CHECKING OPERATION for checking operation
NOTE:

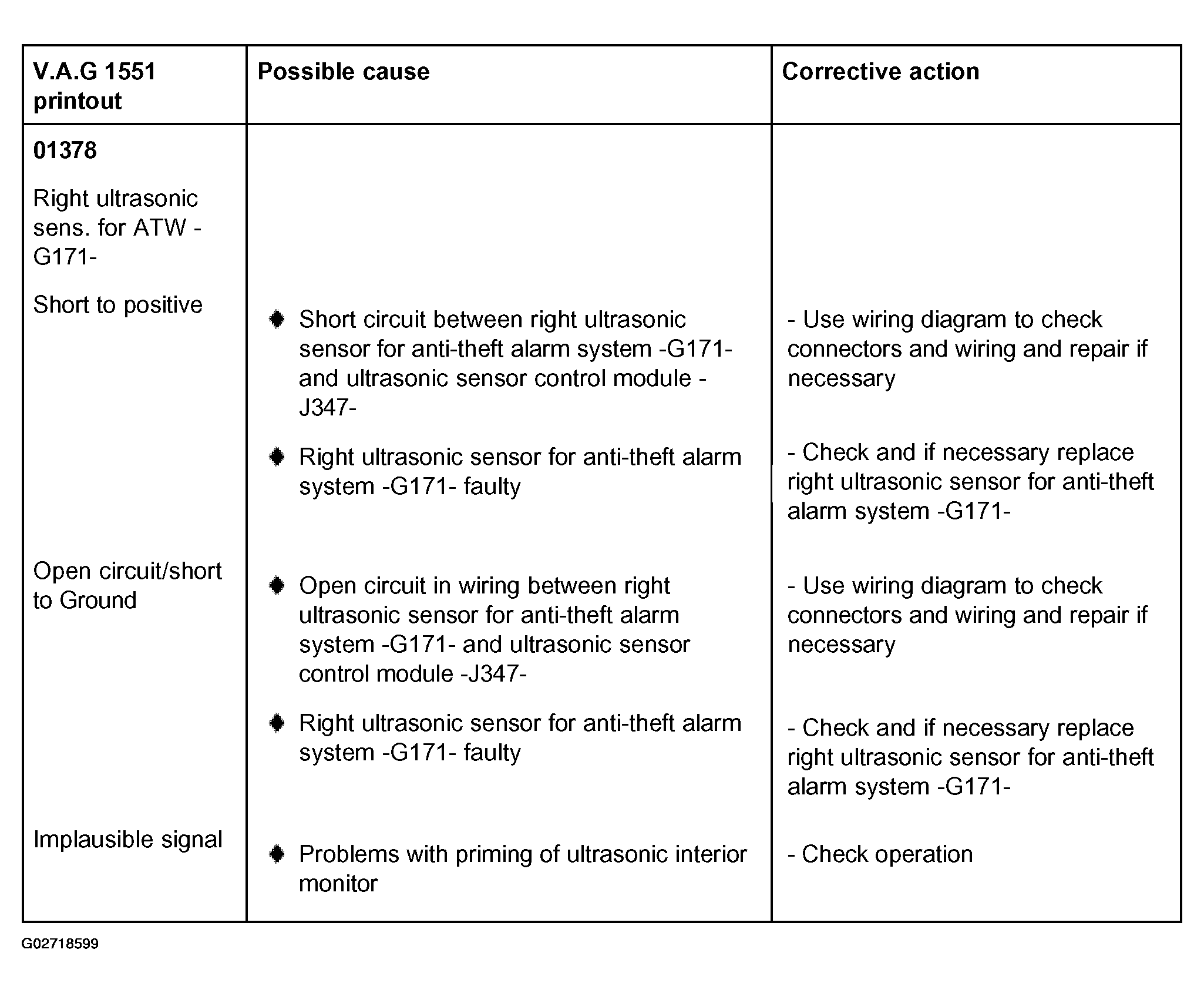

In Fig 3
refer to:
- INTERIOR MONITOR, CHECKING OPERATION for checking operation
NOTE:

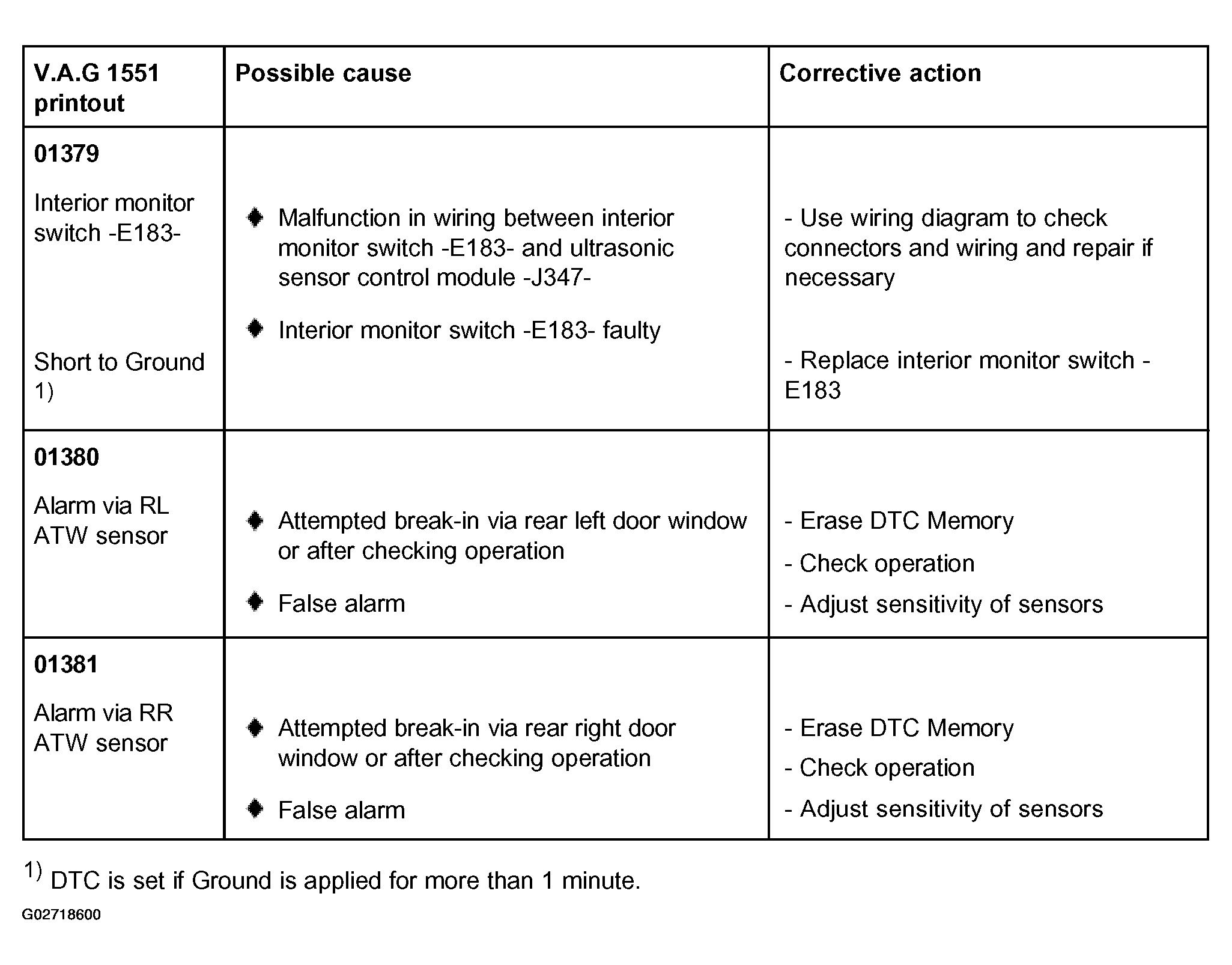

In Fig 4
refer to:
- SWITCHES, SERVICING or INTERIOR LIGHTS & SWITCHES for replacing interior monitor switch
- ERASE DTC MEMORY (FUNCTION 05) for erasing DTC memory
- INTERIOR MONITOR, CHECKING OPERATION for checking operation
- ADAPTATION (FUNCTION 10) for adjusting sensitivity of sensors
NOTE:

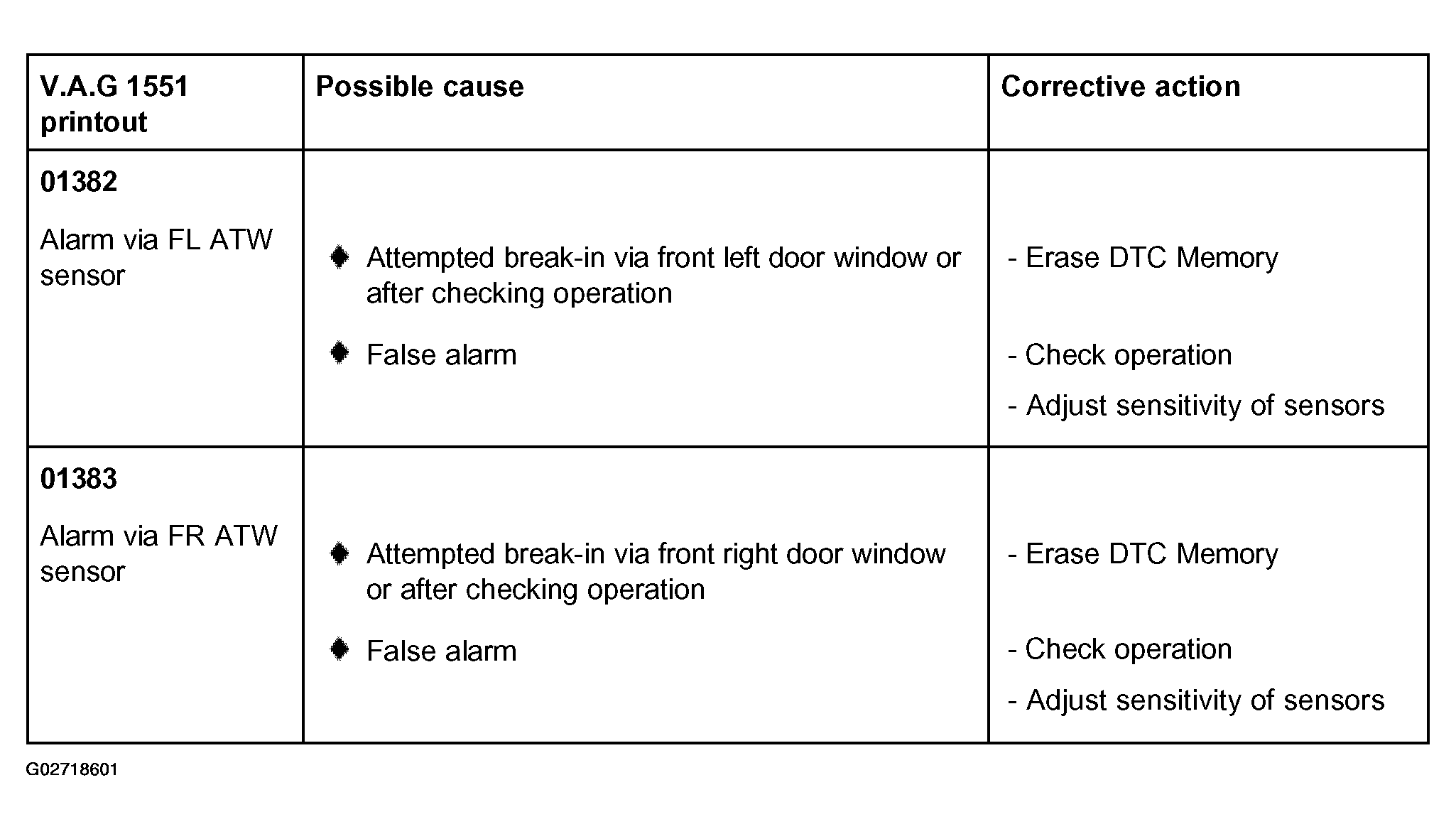

In Fig 5
refer to:
- ERASE DTC MEMORY (FUNCTION 05) for erasing DTC memory
- INTERIOR MONITOR, CHECKING OPERATION for checking operation
- ADAPTATION (FUNCTION 10) for adjusting sensitivity of sensors
NOTE:

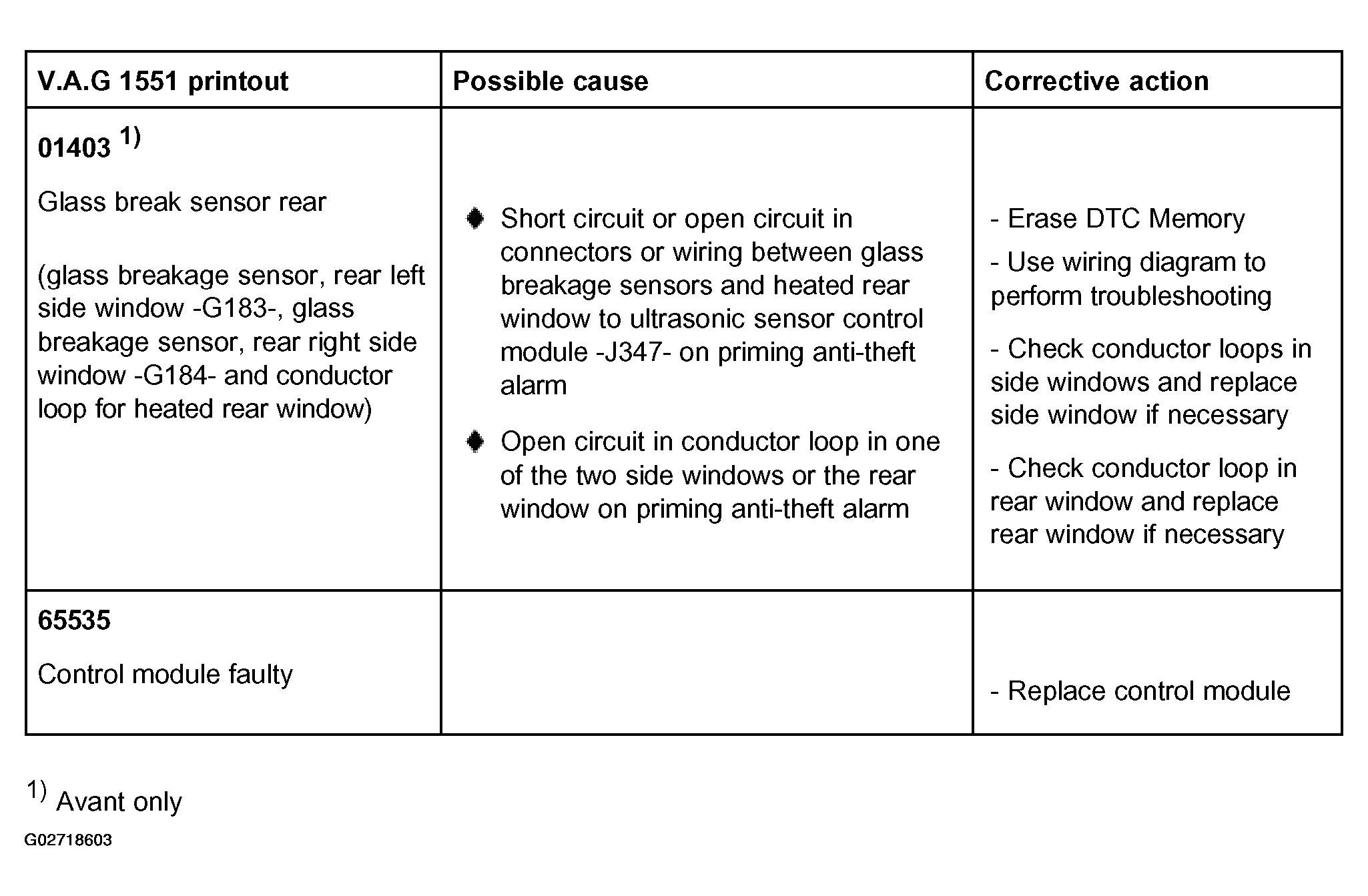

In Fig 6
refer to:
- ERASE DTC MEMORY (FUNCTION 05) for erasing DTC memory.
NOTE:

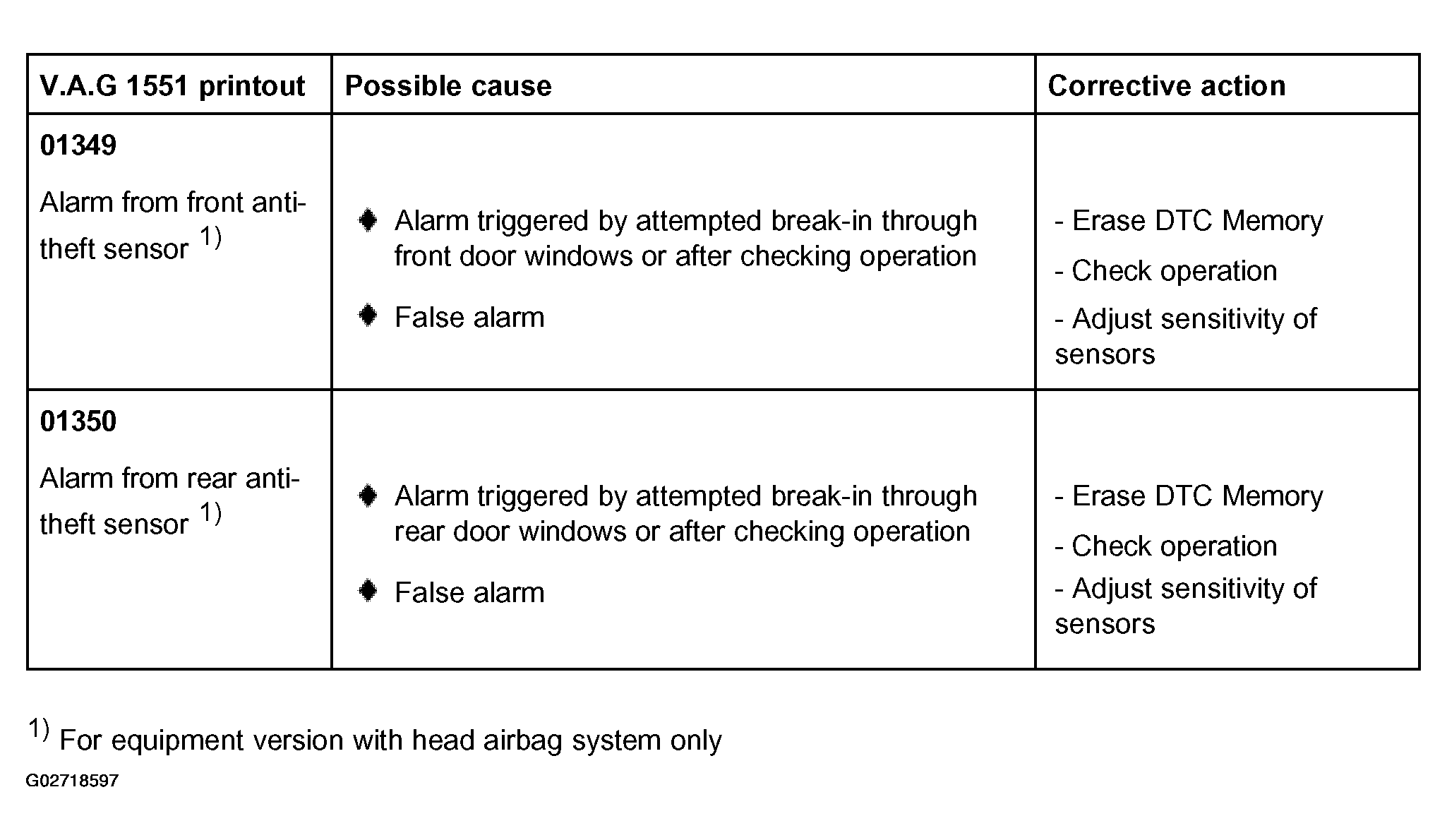

In Fig 7
refer to:
- ERASE DTC MEMORY (FUNCTION 05) for erasing DTC memory.
