Test requirements:

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Voltage supply and fuses for appropriate system OK.
See appropriate System Wiring Diagram article.
Connect V.A.G 1551 Scan Tool (ST). See V.A.G 1551 SCAN TOOL (ST), CONNECTING .

NOTE:

If no display appears, use wiring diagram to check power supply for V.A.G 1551.
Additional operating instructions can be called up by pressing the scan tool HELP button.
Next step in program sequence can be selected by pressing --> button.
Incorrect entries can be terminated by pressing -C- button.

Switch on printer by pressing PRINT button (lamp in button lights).
Press button -1- for "Rapid data transfer".

Indicated on display:

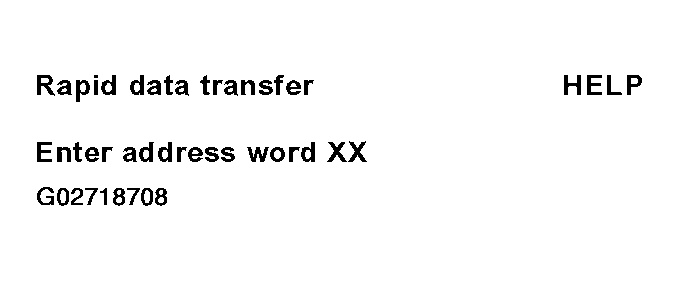

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (1 Of 6)

G02718708

Courtesy of AUDI OF AMERICA, INC.

Address word for front passenger seat memory system: 06

Press buttons -0- and -6-.

Indicated on display:

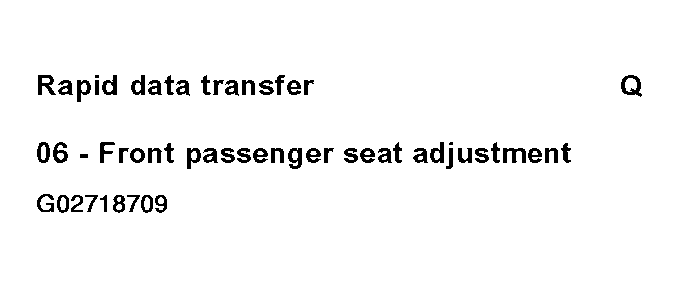

Fig 2: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (2 Of 6)

G02718709

Courtesy of AUDI OF AMERICA, INC.

Confirm entry with -Q- button.

Indicated on display:

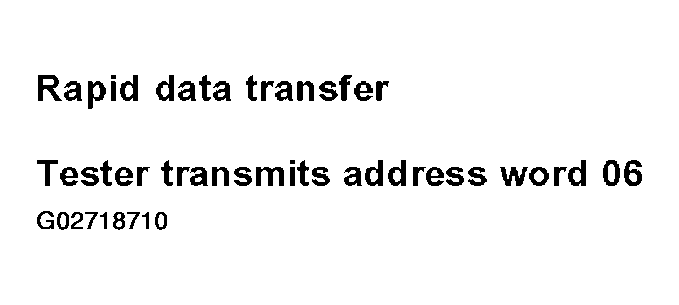

Fig 3: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (3 Of 6)

G02718710

Courtesy of AUDI OF AMERICA, INC.

If "No control module response" appears on display: Close door, then open again and keep open. Re-start On Board Diagnostic (OBD).

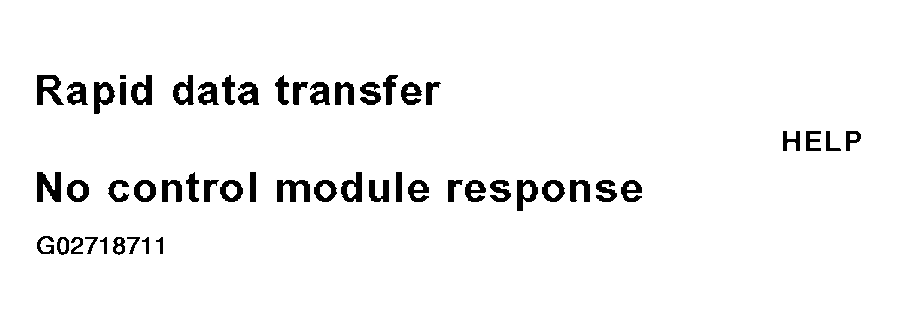

Fig 4: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (4 Of 6)

G02718711

Courtesy of AUDI OF AMERICA, INC.

Adjacent display appears after approx. 5 seconds:

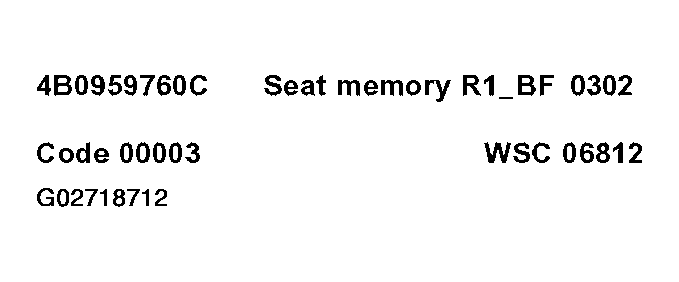

Fig 5: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (5 Of 6)

G02718712

Courtesy of AUDI OF AMERICA, INC.

Press --> button.

Indicated on display:

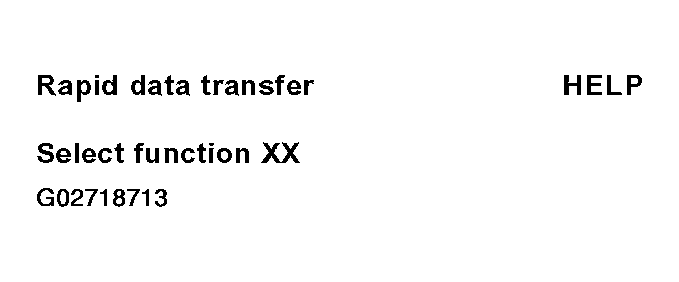

Fig 6: V.A.G 1551 Scan Tool (ST) Display - Front Passenger Seat Adjustment With Memory Control Module, Initiating Program (6 Of 6)

G02718713

Courtesy of AUDI OF AMERICA, INC.

NOTE: Pressing HELP button prints out a list of possible functions.
