Test requirements:
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Voltage supply and fuses for appropriate system OK.
See appropriate System Wiring Diagram article.
- Connect V.A.G 1551 Scan Tool (ST). See V.A.G 1551 SCAN TOOL (ST), CONNECTING .
- Anti-theft alarm not primed.
- Ignition key not inserted.
NOTE:
- If no display appears, use wiring diagram to check power supply for V.A.G 1551.
- Additional operating instructions can be called up by pressing the scan tool HELP button.
- Next step in program sequence can be selected by pressing --> button.
- Incorrect entries can be terminated by pressing -C- button.
- Switch on printer by pressing PRINT button (lamp in button lights).
- Press button -1- for "Rapid data transfer".
Indicated on display:

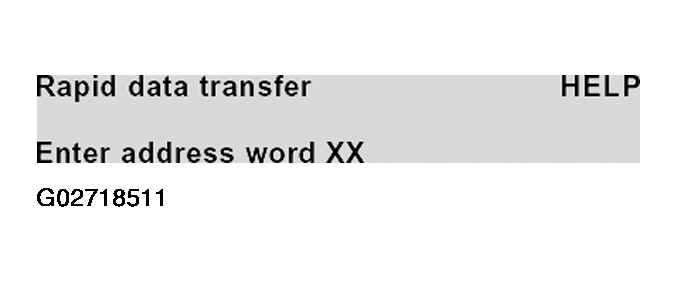

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Initiating On Board Diagnostic (1 Of 5)
Address word for central locking: 35
- Press buttons -3- and -5-.
Indicated on display:

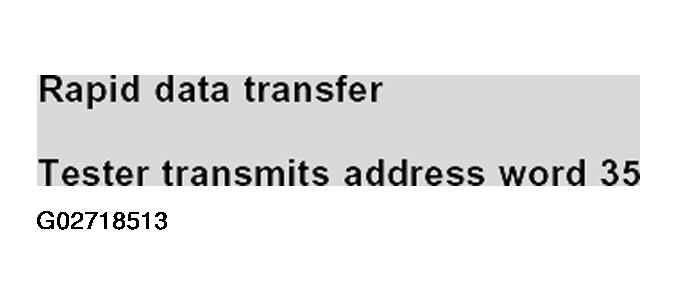

Fig 2: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Initiating On Board Diagnostic (2 Of 5)
- Confirm entry with -Q- button.
Indicated on display:

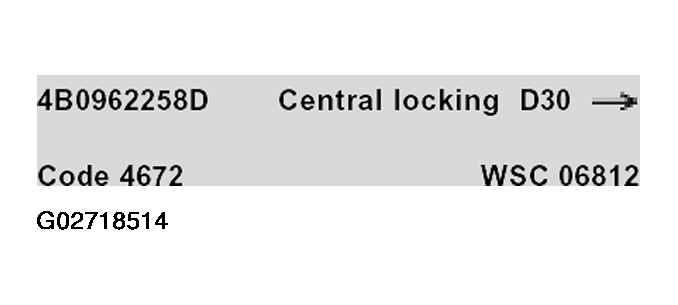

Fig 3: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Initiating On Board Diagnostic (3 Of 5)
Adjacent display appears after approx. 5 seconds (for example, for vehicles with no anti-theft alarm):
Fig 4: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Initiating On Board Diagnostic (4 Of 5)
- Press --> button.

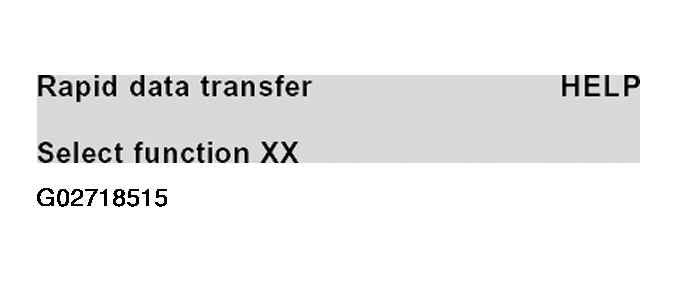

Indicated on display:
Fig 5: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Initiating On Board Diagnostic (5 Of 5)
NOTE:
Pressing HELP button prints out a list of possible functions.
