Torque Specifications

WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For engine-to-transmission bolts: Tightening torques are valid only for nuts and bolts that are lightly greased, oiled, covered with a thin coat of phosphate or blackened. Other lubricants are permitted (e.g. engine oil or transmission fluid); however, they may not contain graphite. Do not use any degreased parts.
Fig 1: Dual-Mass Flywheel & Clutch Bolt With Torque Specifications (1.8L Turbo)
G00282715Courtesy of AUDI OF AMERICA, INC.

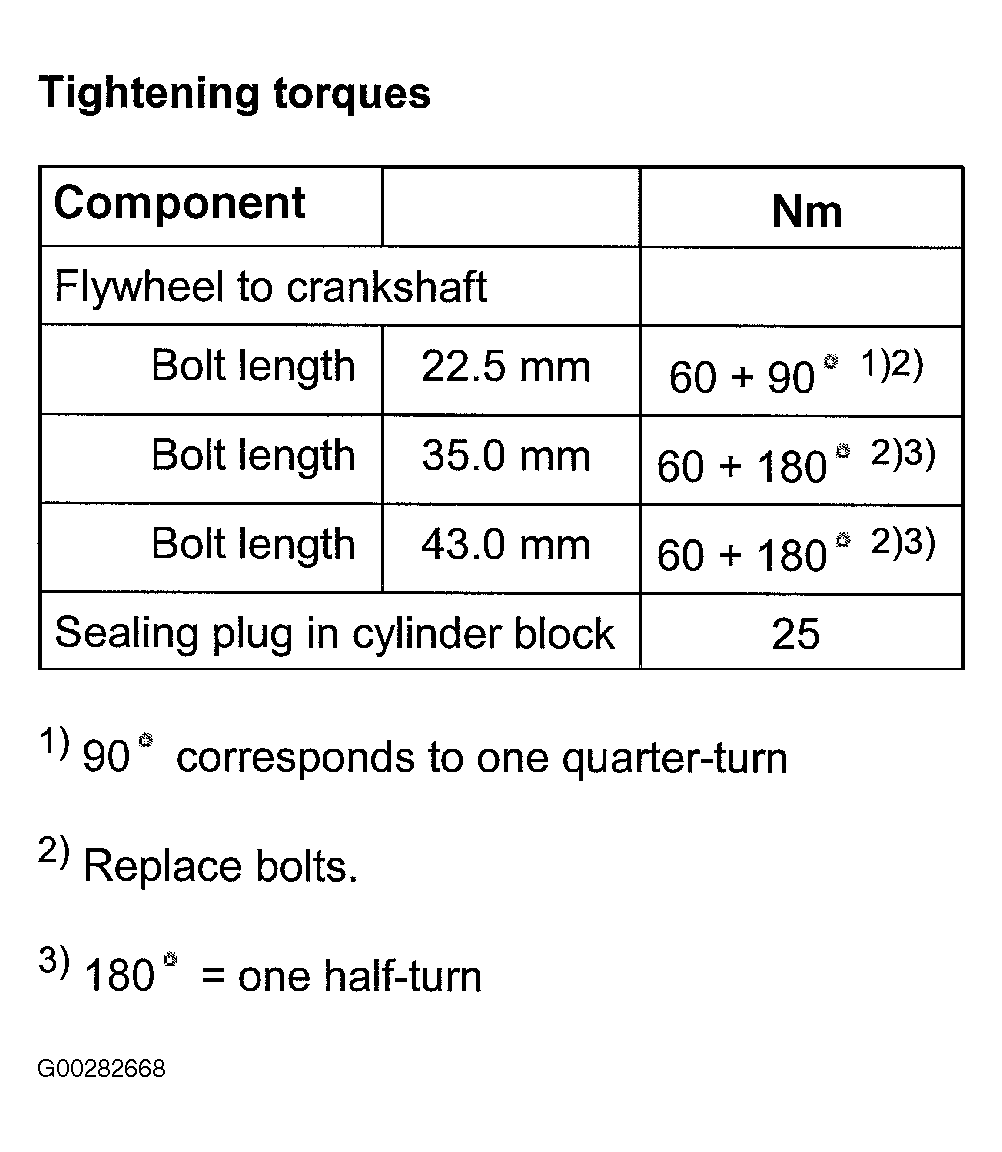

Fig 2: Dual-Mass Flywheel Fastener With Torque Specifications (3.0L V6 )
G00282668Courtesy of AUDI OF AMERICA, INC.

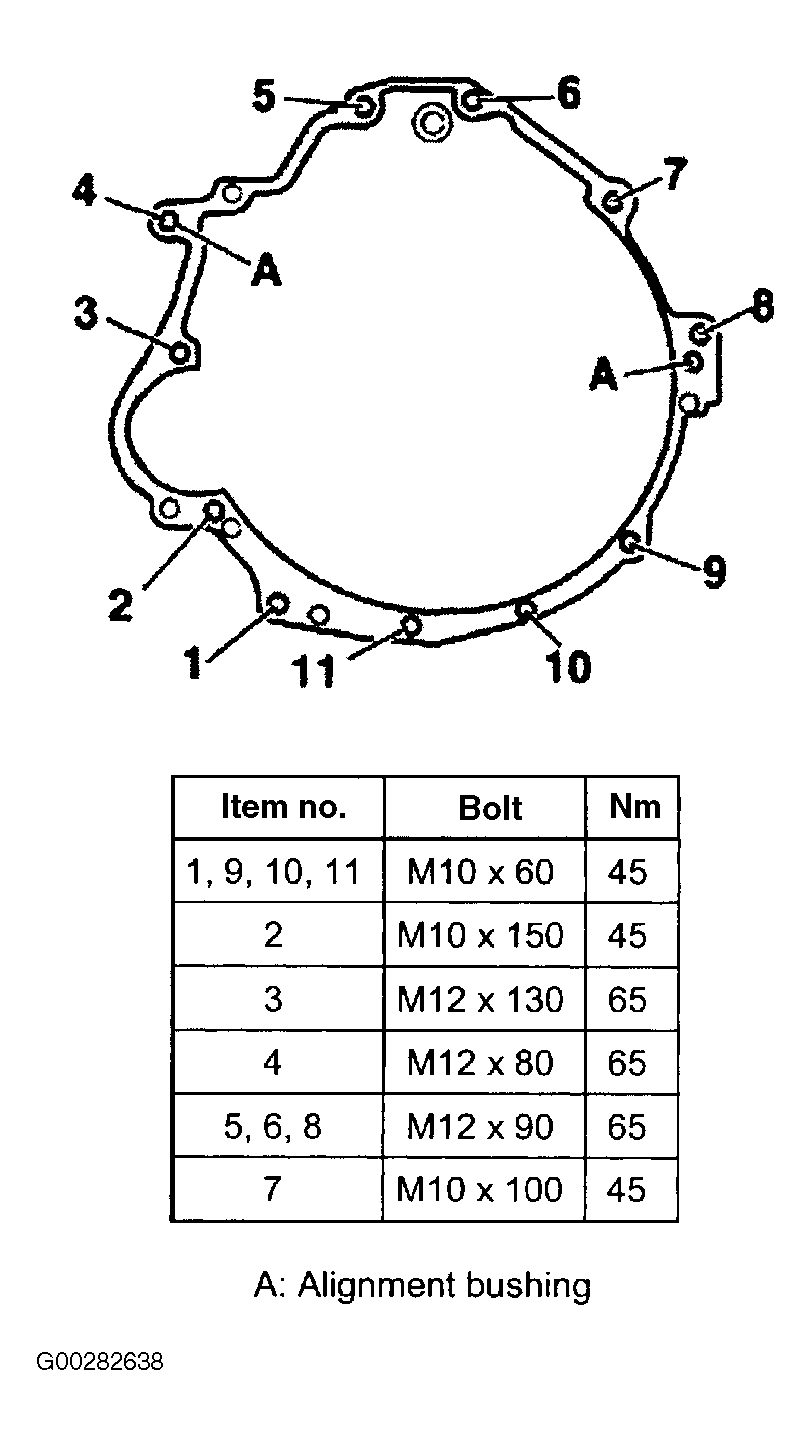

Fig 3: Transaxle To Engine Bolt With Torque Specifications (3.0L V6)
G00282638Courtesy of AUDI OF AMERICA, INC.
Fig 4: Transaxle To Engine Bolt Torque Specifications Table (1.8L Turbo)
G00355211Courtesy of AUDI OF AMERICA, INC.
Fig 5: Transaxle Replacement Components Fastener With Torque Specifications (1.8L Turbo)
G00282615Courtesy of AUDI OF AMERICA, INC.
