Torque Specifications

WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Dual-Mass Flywheel Fastener With Torque Specifications (3.0L V6 )

Courtesy of AUDI OF AMERICA, INC.

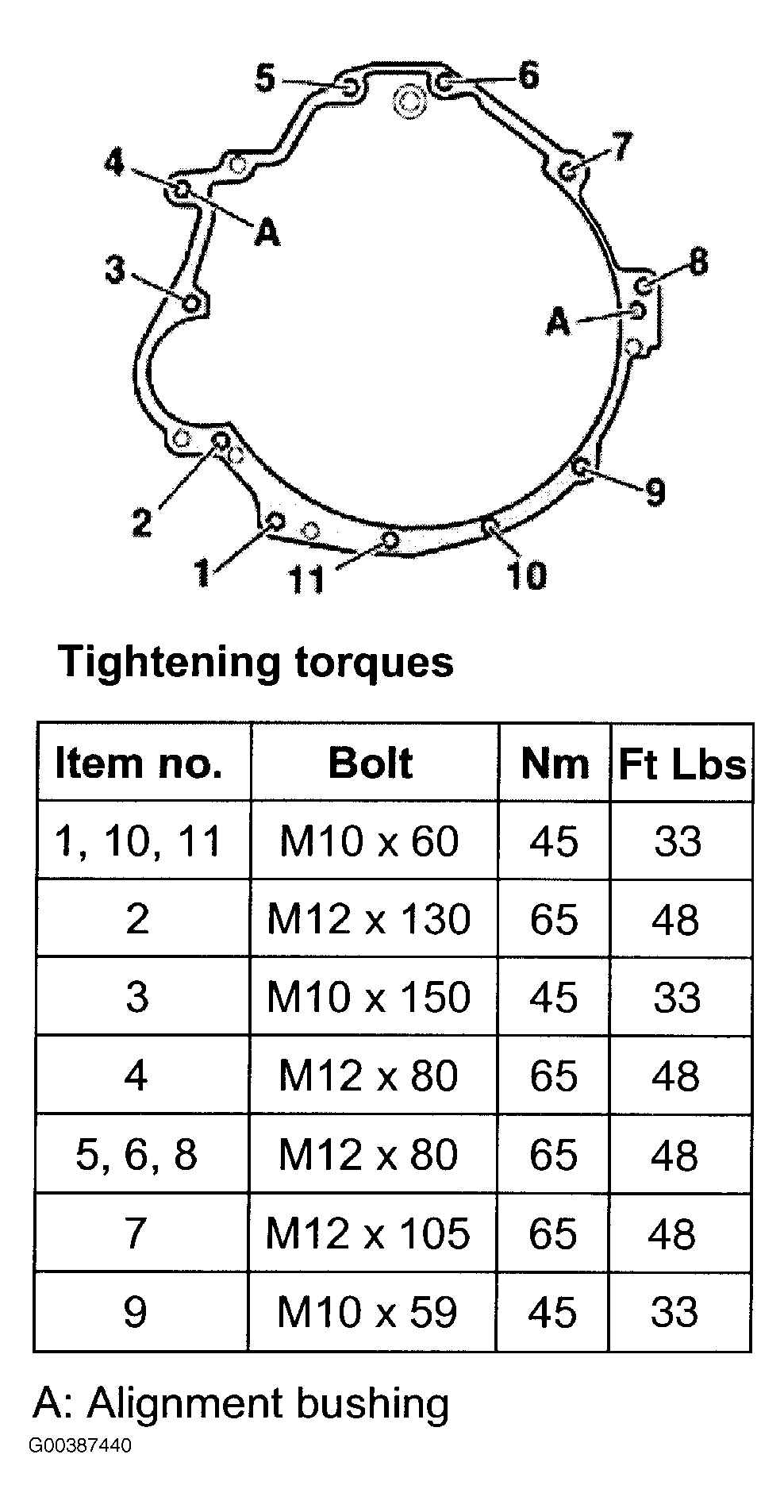

Fig 2: Engine To Transaxle Bolt Torque Specifications Table (3.0L V6 )

Courtesy of AUDI OF AMERICA, INC.

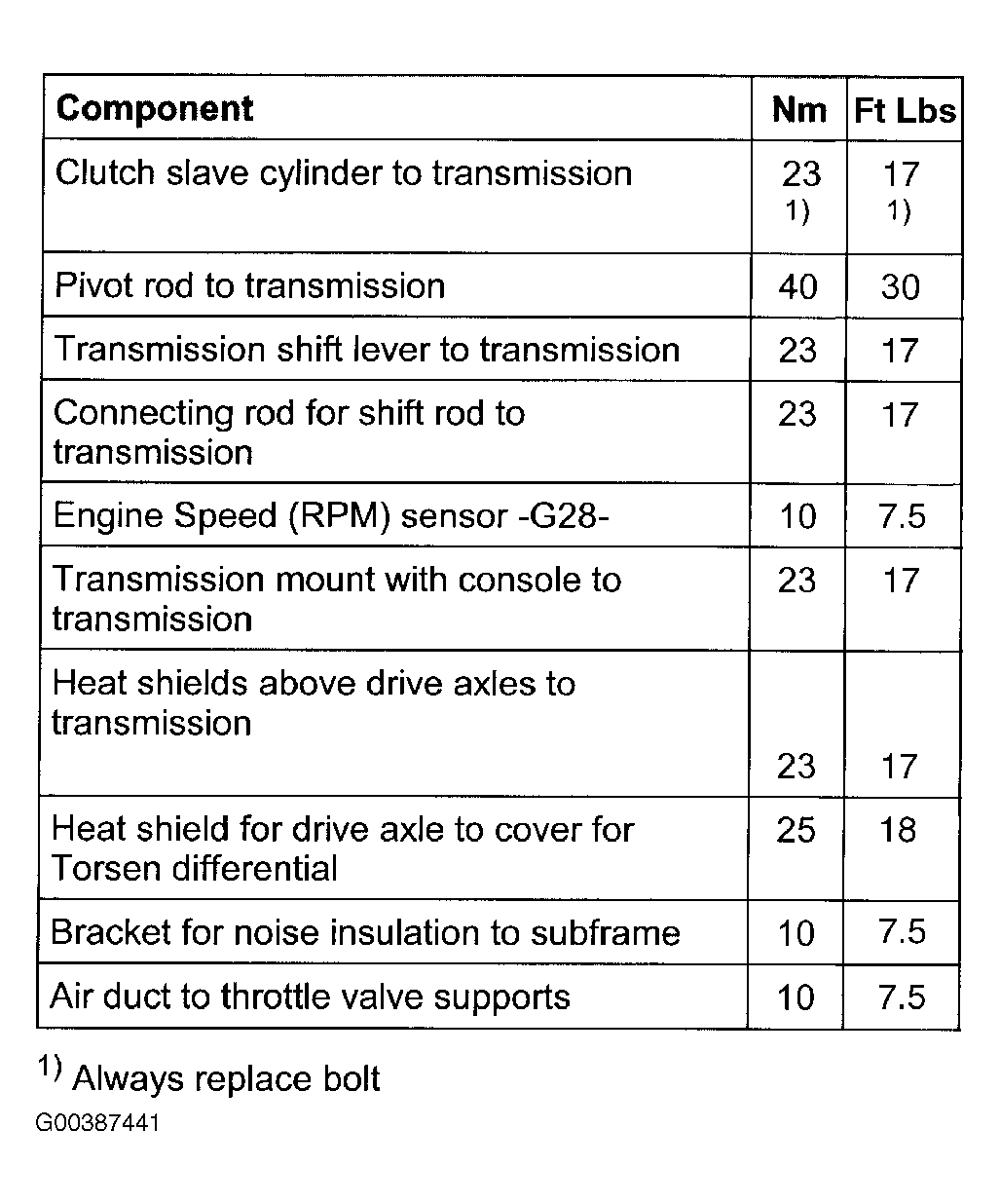

Fig 3: Peripheral Transaxle Replacement Components Fastener Torque Specifications Table (3.0L V6 )

Courtesy of AUDI OF AMERICA, INC.
