Torque Specifications

WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

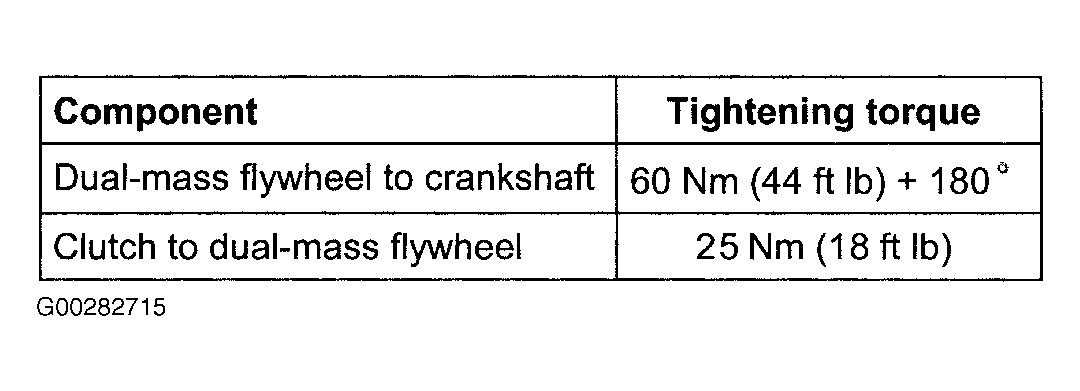

Fig 1: Dual-Mass Flywheel & Clutch Bolt With Torque Specifications (1.8L Turbo)

Courtesy of AUDI OF AMERICA, INC.

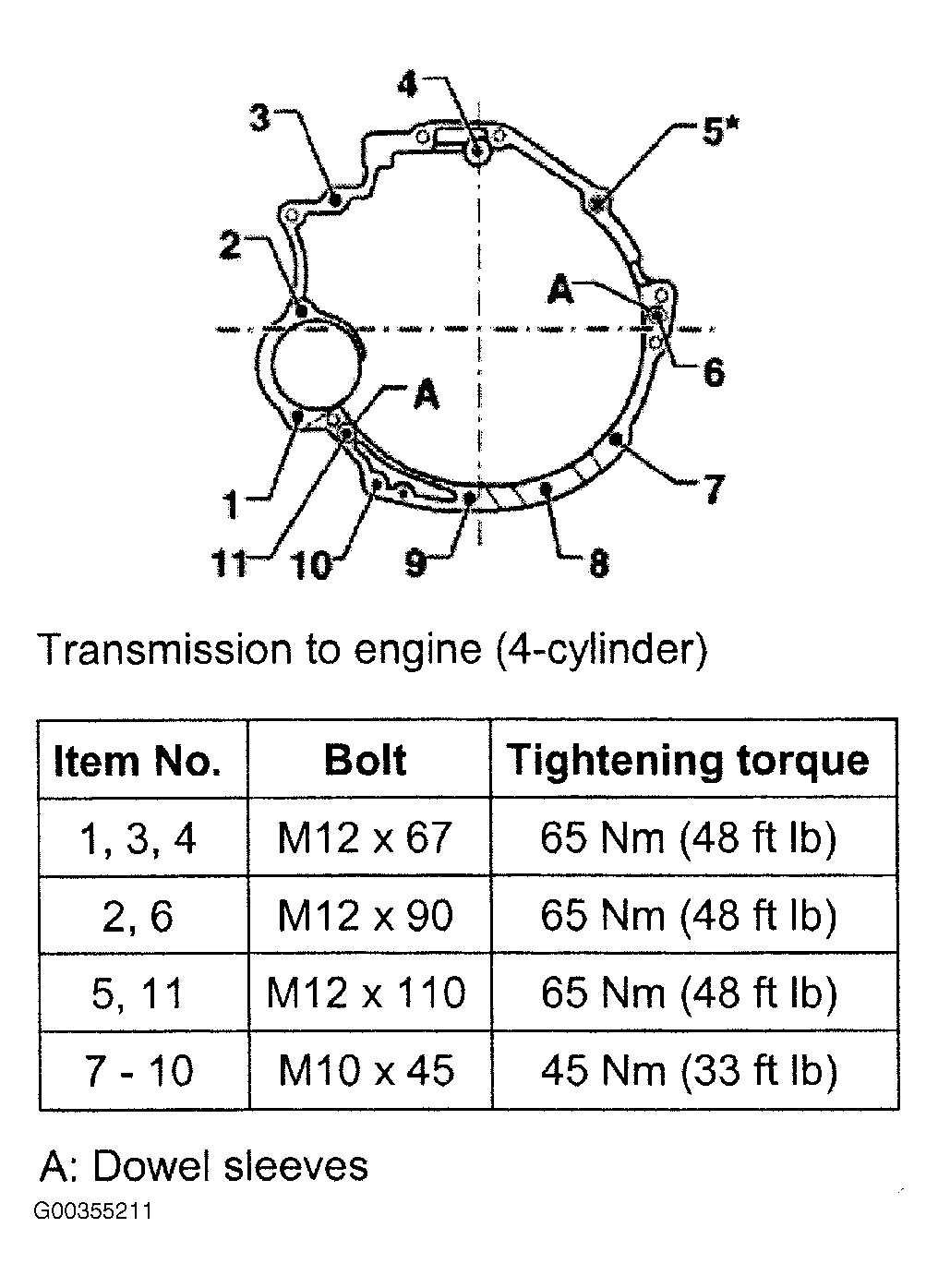

Fig 2: Transaxle To Engine Bolt Torque Specifications Table (1.8L Turbo)

Courtesy of AUDI OF AMERICA, INC.

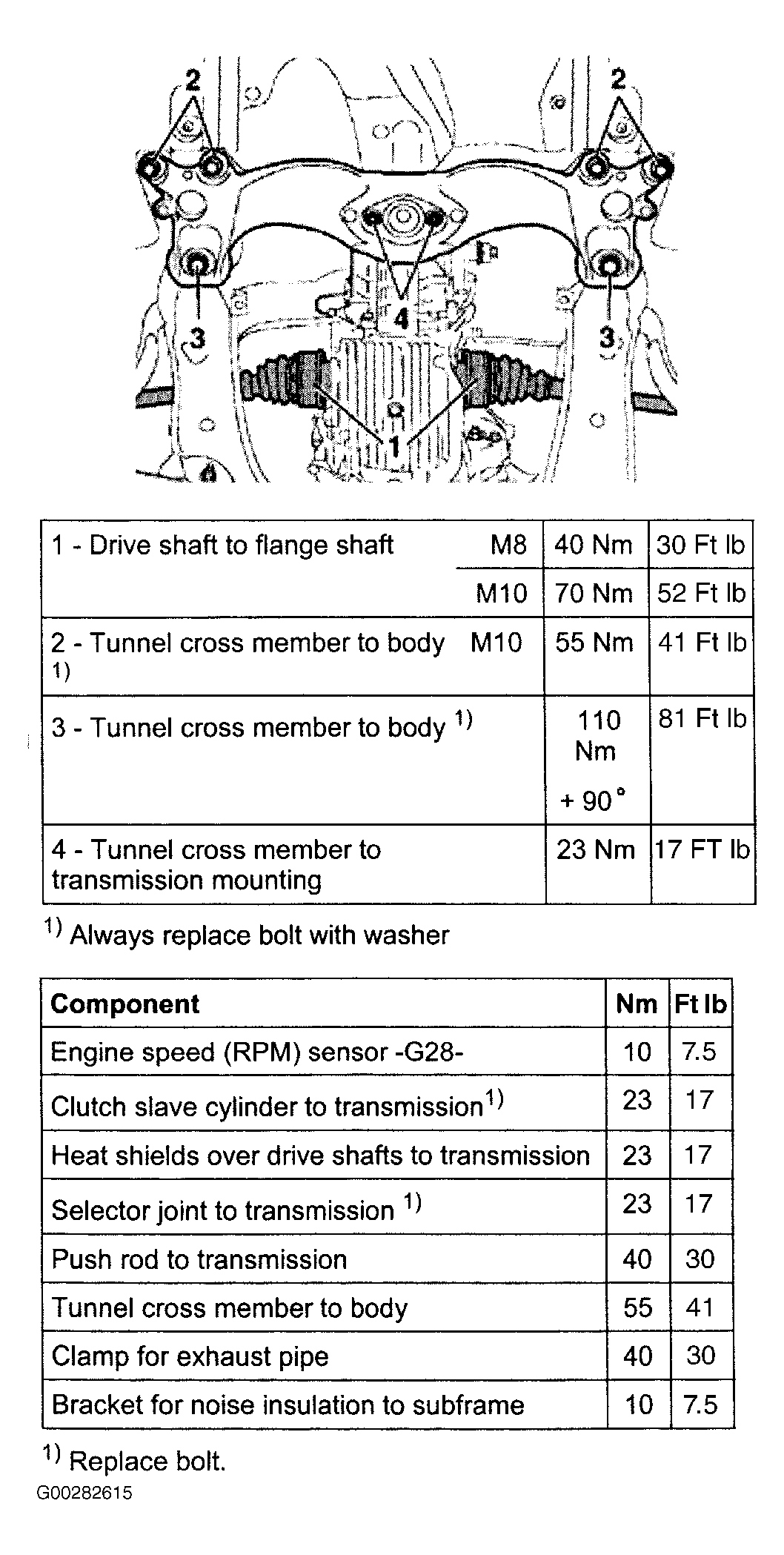

Fig 3: Peripheral Transaxle Replacement Components Fastener With Torque Specifications (1.8L Turbo)

Courtesy of AUDI OF AMERICA, INC.
