Section 29 (Clutches - 01W): Identification: Transaxle

WARNING: This page is about a different car, the 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The manual transmission 012/01W FWD is installed in the Audi A4 as a 5-speed transmission in conjunction with the 4-cylinder turbo engine. For locating code letters. See Fig 1. For locating code letters and date of manufacture. See Fig 2.

NOTE: The code letters of the transmission are also engraved on the vehicle data plates.

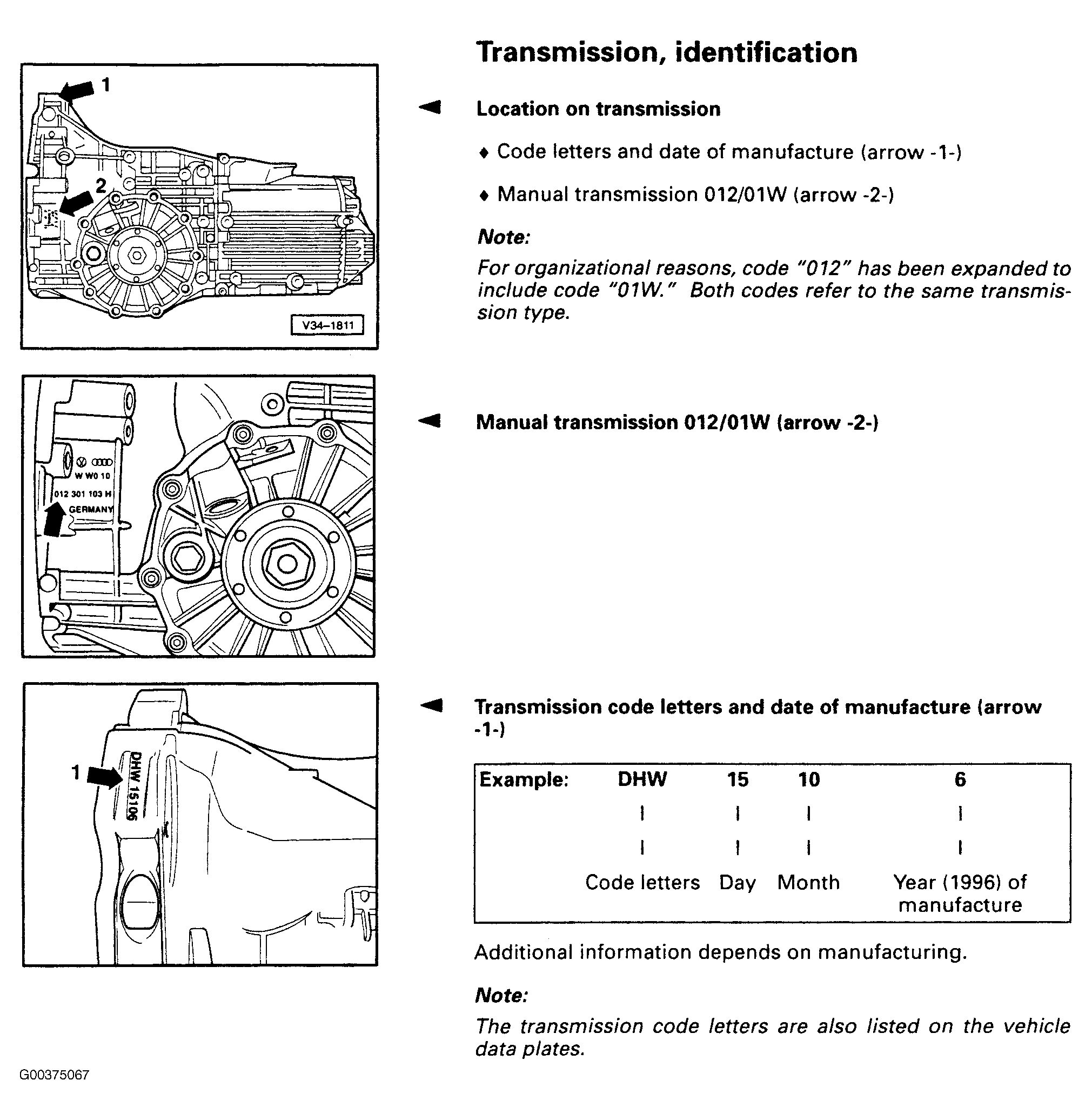

Fig 1: Locating O12/01W 5-Speed Transaxle Code Letters

Courtesy of AUDI OF AMERICA, INC.

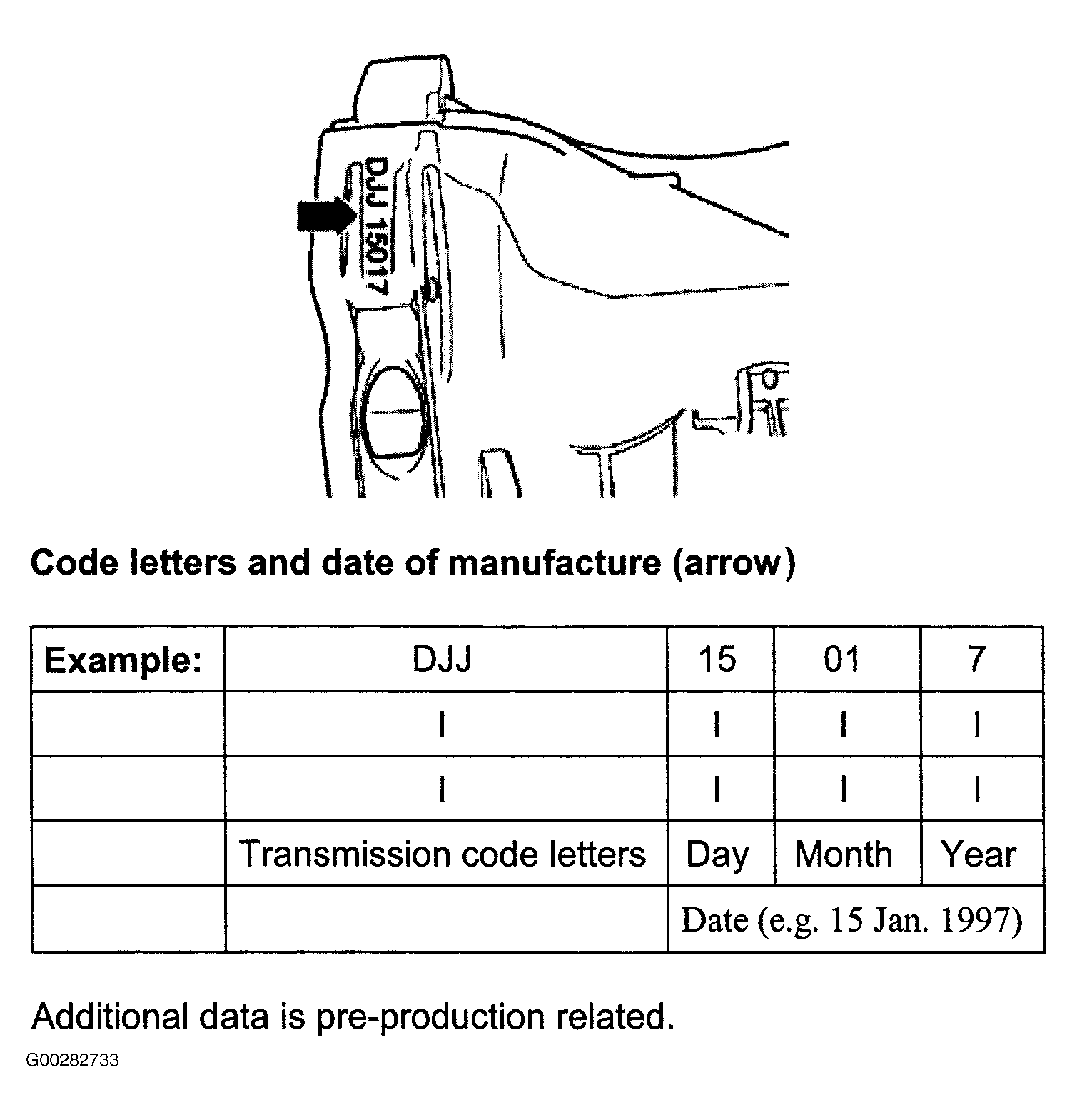

Fig 2: Locating O12/01W 5-Speed Code Letters & Date Of Manufacture

Courtesy of AUDI OF AMERICA, INC.
