Section 2 (Suspension - Front): Description

Front suspension is a MacPherson strut independent type suspension. See Fig 1.

Vehicles with gas discharge lamps have an automatic headlight range control installed as standard. To function correctly, automatic headlight range control requires information about the compression and rebound travel at front and rear axles. For this purpose, position of the bottom left link in relation to body is transmitted to left front level control system sensor by means of an actuating arm. See Fig 2. This transfers electrical signals to the control module for headlight range control module. Vehicle level can change as a result of the following situations:

• Trailer operation.
• Different payloads; vehicle empty, vehicle partly or fully loaded.
• Slow or fast driving.

Shock absorber combination installed on vehicle, can be seen from the corresponding PR number on vehicle data sticker. See Fig 3. See SUSPENSION VERSION IDENTIFICATION  table. Vehicle data sticker can be found in spare wheel well, and in Maintenance manual.

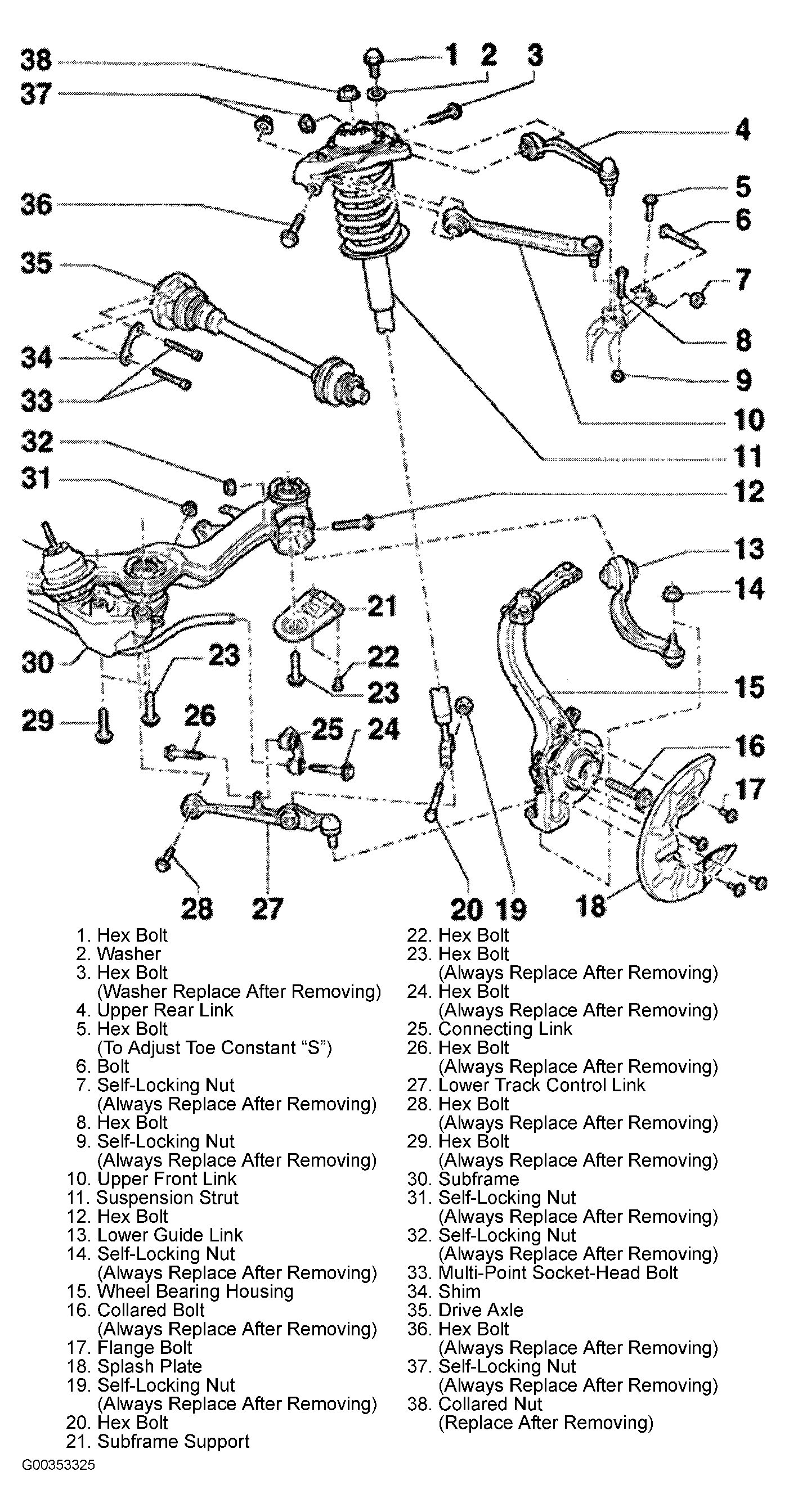

Fig 1: Exploded View Of Front Suspension

Courtesy of AUDI OF AMERICA, INC.

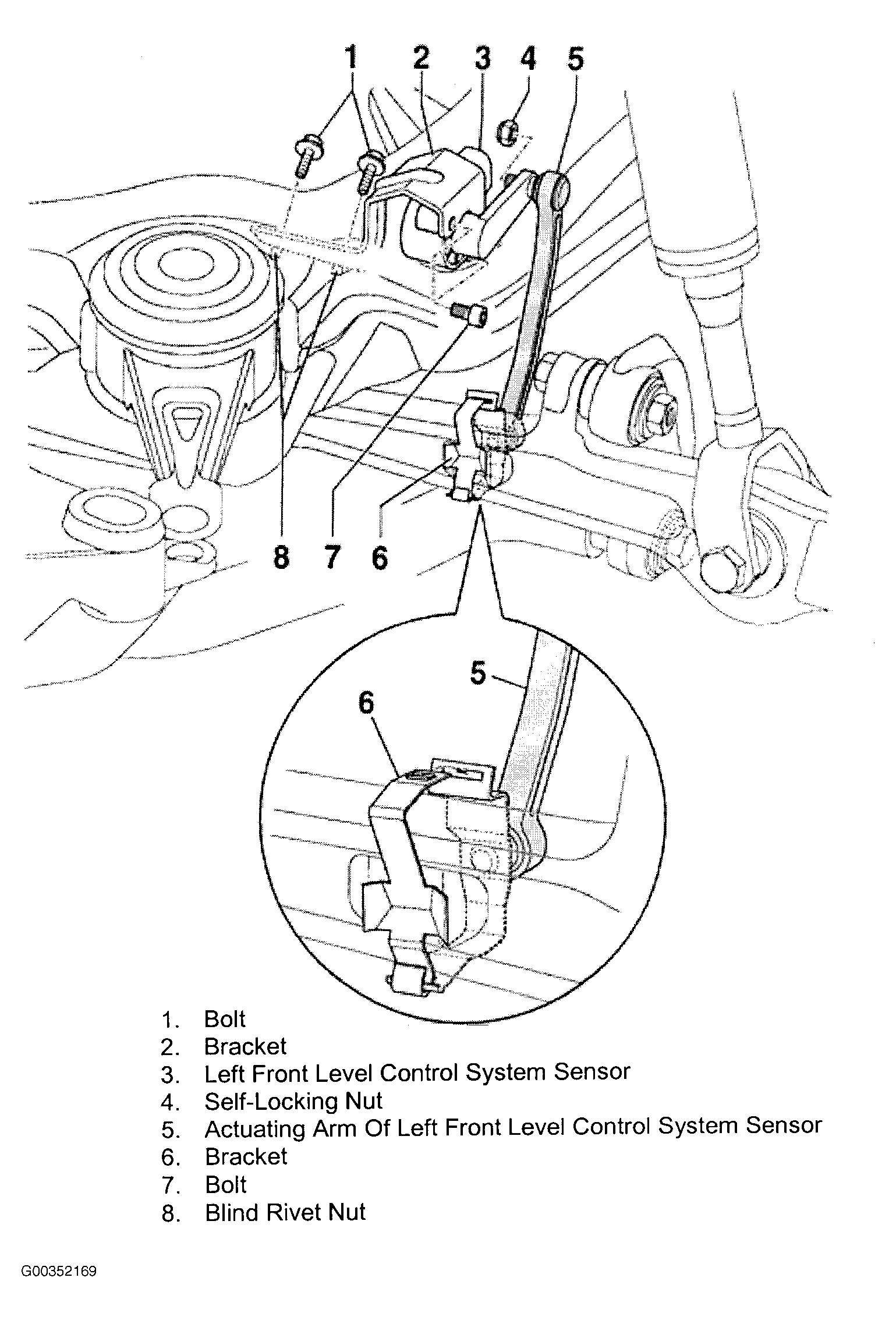

Fig 2: Locating Automatic Headlight Level Sensor

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Identifying Vehicle Data Sticker

Courtesy of AUDI OF AMERICA, INC.
