Navigation System IV, layout

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1 .

  1. Control unit for navigation system with CD drive (central unit and navigation unit)
    • In left rear luggage compartment storage
  2. Instrument cluster (display unit)
  3. Function selector switch (operating unit)
    • In center console
  4. To the loudspeakers activated for speech messages
  5. Antenna for Navigation System (GPS) -R50-

    Sedan:

    • Under rear headliner trim

    Avant:

    • Integrated in roof antenna

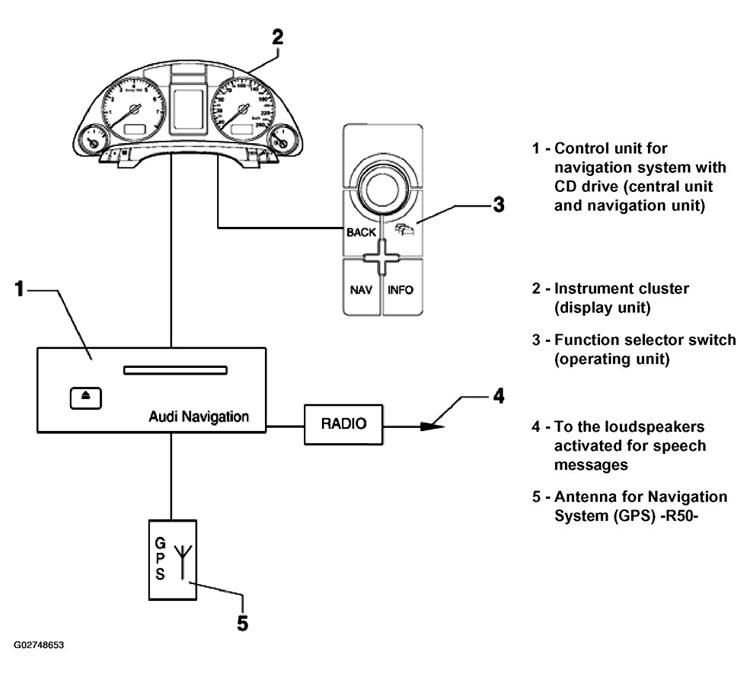

  6. Fig 1: Layout Of Navigation System IV
    G02748653Courtesy of AUDI OF AMERICA, INC.
