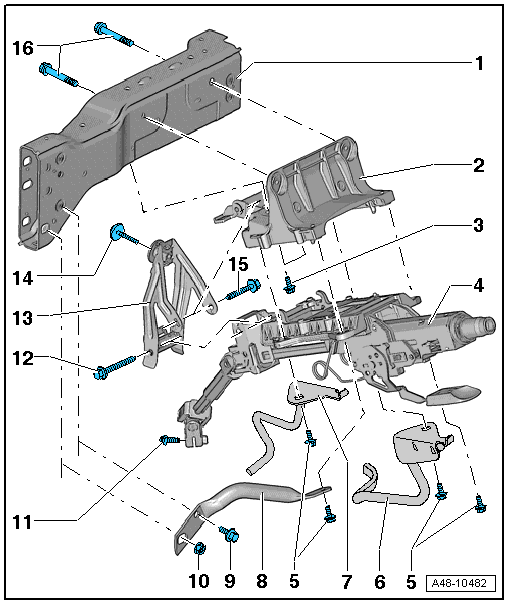

Steering Column And Bracket With Frequency Damper Overview
NOTE:
Welding and straightening work on supporting or wheel carrying components of the suspension is not permitted.
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
- Lateral Control Arm for Steering Column
- Mounting Bracket
- Bolt
- 20 Nm
- Steering Column
- Removing and installing, refer to STEERING COLUMN .
- Bolt
- 20 Nm
- Brake Pedal Crash Brace
- Installed depending on the country version.
- Clutch Pedal Crash Brace
- Installed depending on the country version.
- Brace
- Installed depending on the model.
- Bolt
- Tightening specification, refer to Description and Operation .
- Nut
- Tightening specification, refer to Description and Operation .
- Bolt
- 20 Nm + 90° turn
- Always replace if removed.
- Bolt
- 9 Nm
- Clip the support to the steering column before installing.
- Strut
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Bolt
- 20 Nm
