Radio System Component Locations

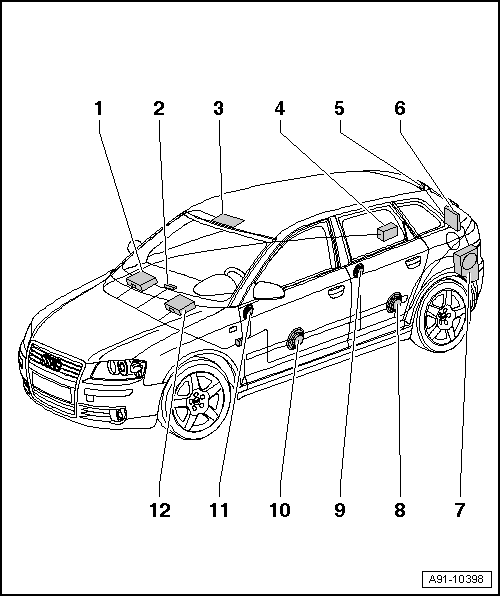

Fig 1: Radio Systems Components Overview

Courtesy of AUDI OF AMERICA, LLC

CD Changer -R41-
- Inside the glove compartment.
- Connectors, refer to CD CHANGER CONNECTOR AND CONNECTOR ASSIGNMENTS .
- Removing and installing, refer to CD CHANGER .
  - iPod Baseplate -R192-
- Connectors, refer to IPOD BASEPLATE CONNECTOR AND CONNECTOR ASSIGNMENTS .
- Removing and installing, refer to IPOD BASEPLATE .
Center Mid/High Range Loudspeaker -R158-
- In front instrument panel, center.
- Removing and installing, refer to CENTER MID/HIGH RANGE SPEAKER .
Inside Microphone -R74-
- Only with BOSE
- in Front Interior Light -W1-
- Function test, refer to INSIDE MICROPHONE, FUNCTION TEST .
- Removing and installing, refer to INSIDE MICROPHONE .
Digital Sound System Control Module -R12-
- Only with BOSE.
- behind luggage compartment right side trim.
- Connectors, refer to DIGITAL SOUND SYSTEM CONTROL MODULE CONNECTOR AND CONNECTOR ASSIGNMENTS .
Antenna Amplifier -R24-
- On upper left of rear lid.
- Connectors, refer to ANTENNA AMPLIFIER, RIGHT ANTENNA MODULE AND ANTENNA AMPLIFIER 2 CONNECTORS AND CONNECTOR ASSIGNMENTS .
- Radio generation II+ connections, refer to ANTENNA AMPLIFIER, RIGHT ANTENNA MODULE AND ANTENNA AMPLIFIER 2 CONNECTORS AND CONNECTOR ASSIGNMENTS .
- Removing and installing, refer to ANTENNA AMPLIFIER, RIGHT ANTENNA MODULE AND ANTENNA AMPLIFIER 2 .
Left Antenna Module -R108-
- At the bottom of the rear lid on the left side.
- Connectors, refer to LEFT ANTENNA MODULE CONNECTORS .
- Radio generation II+ connections, refer to LEFT ANTENNA MODULE CONNECTORS, RADIO GENERATION II+ ONLY .
- Removing and installing, refer to LEFT ANTENNA MODULE .
Amplifier with Bass Speaker in Left Luggage Compartment -R44- /Bass Speaker -R100-
- Behind luggage compartment left side trim.
- Connectors amplifier with bass speaker in left luggage compartment, refer to AMPLIFIER WITH BASS SPEAKER IN LEFT LUGGAGE COMPARTMENT CONNECTOR AND CONNECTOR ASSIGNMENTS .
- Removing and installing amplifier with bass speaker in left luggage compartment, refer to AMPLIFIER WITH BASS SPEAKER IN LEFT LUGGAGE COMPARTMENT .
- Removing and installing bass speaker, refer to BASS SPEAKER .
Left Rear Midrange Speaker -R105- /Right Rear Midrange Speaker -R106-
- in bottom of rear doors.
- Removing and installing, refer to REAR MIDRANGE SPEAKER .
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- In top of rear doors.
- Removing and installing, refer to REAR TREBLE SPEAKER .
Left Front Mid/Low Range Loudspeaker -R101- /Right Front Mid/Low Range Loudspeaker -R102-
- In bottom of front doors.
- Removing and installing, refer to FRONT MID/LOW RANGE LOUDSPEAKER .
Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- In the center of the A-pillar.
- Removing and installing, refer to FRONT TREBLE SPEAKER .
Radio -R-
- In the top of the center console.
- Connectors, chorus, through KW 21/04, refer to RADIO SYSTEM CONNECTORS AND CONNECTOR ASSIGNMENTS, CHORUS THROUGH KW 21/04 .
- Connectors, chorus, from KW 22/04, refer to RADIO SYSTEM CONNECTORS AND CONNECTOR ASSIGNMENTS, CONCERT AND CHORUS, FROM KW 22/2004
- Concert connections, refer to RADIO SYSTEM CONNECTORS AND CONNECTOR ASSIGNMENTS, CONCERT AND CHORUS, FROM KW 22/2004 .
- Chorus/Concert, removing and installing, refer to RADIO, CHORUS/CONCERT .
- Symphony, connections, refer to RADIO SYSTEM CONNECTORS AND CONNECTOR ASSIGNMENTS, SYMPHONY .
- Radio, generation II+ connections, refer to RADIO SYSTEM CONNECTORS AND CONNECTOR ASSIGNMENTS, CHORUS/CONCERT/SYMPHONY (RADIO GENERATION II+) FROM KW 45/06 .
- Symphony, removing and installing, refer to RADIO, SYMPHONY .
- Symphony II+ transport protection, activating/deactivating, refer to RADIO, SYMPHONY II+ IN TRANSPORT MODE, ACTIVATING/DEACTIVATING .
