Steering Angle Sensor: Removing
-- Remove airbag unit and steering wheel. Refer to Removal and Installation
-- Set the wheels to the straight ahead position.

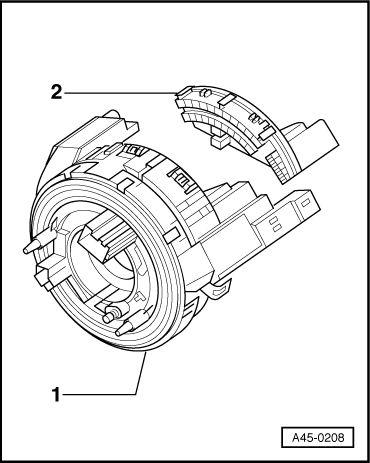

Item -1- coil ring with slip ring.
Clipped onto switch for turn signals, high/low beam headlamps and light signal
Item -1- steering angle sensor -G85- clipped to coil ring with slip ring
WARNING:
The coil ring with slip ring must not be turned when they have been removed.
-- Remove the driver side storage tray. Refer to Removal and Installation
-- Remove the steering column switch module. Refer to Removal and Installation
