Transmission Component Overview

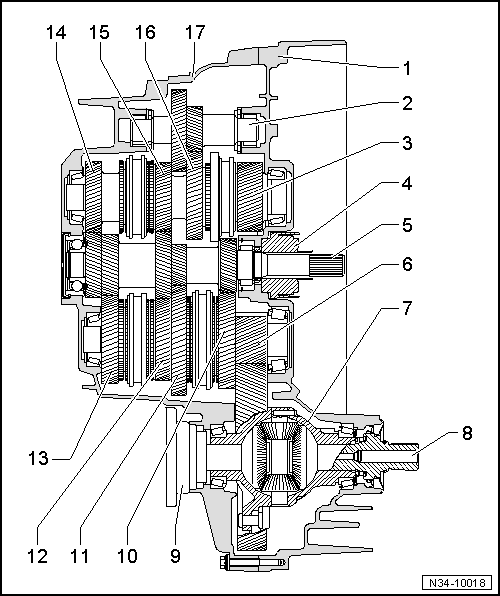

Fig 1: Transmission (Rabbit/GTI) Overview
GWWN34-10018Courtesy of AUDI OF AMERICA, LLC
  1. Clutch housing
  2. Reverse Shaft
  3. Output shaft 5th/6th gear/reverse gear
  4. Slave cylinder with release bearing
  5. Input Shaft
  6. Output Shaft, 1st to 4th Gears
  7. Differential
  8. Stub shaft or flange shaft
    • A new flange shaft was installed from transmission build date 01 11 4
  9. Flange shaft
  10. 2nd gear wheel
  11. 1st gear wheel
  12. 4th gear wheel
  13. 3rd gear wheel
  14. 5th gear wheel
  15. 6th gear wheel
  16. Reverse gear wheel
  17. Transmission housing
