Transmission Control Module (TCM) Connector End View (J217, T52)
Transmission Control Module (TCM) Connector End View (J217, T52)

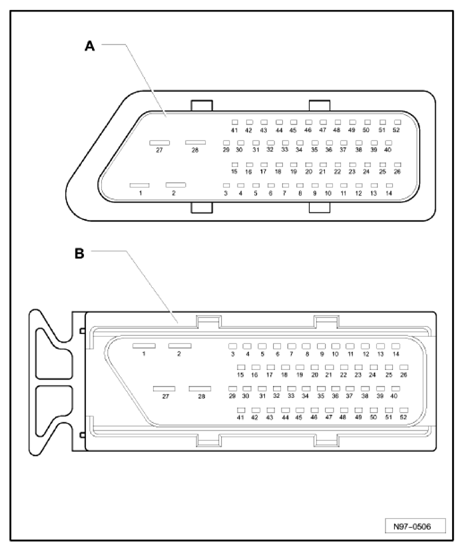

Fig 1: Transmission Control Module (TCM) Connector End View (J217, T52)
Courtesy of AUDI OF AMERICA, LLC
A
Transmission Control Module (TCM) -J217- Connector
B
52-Pin Connector -T52-
