Electronic Damping Control Module Connector End View (J250, T47)

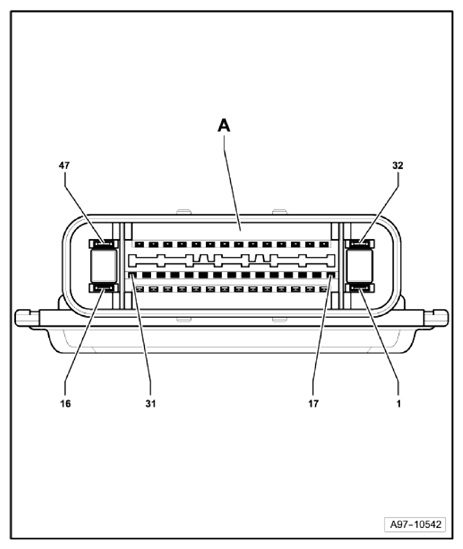

Fig 1: Electronic Damping Control Module Connector End View (J250, T47)

G10359744

Courtesy of AUDI OF AMERICA, LLC

A	47-Pin Connector -T47-
