Data Bus On Board Diagnostic Interface Connector End View (J533, T20d)
Data Bus On Board Diagnostic Interface Connector End View (J533, T20d)

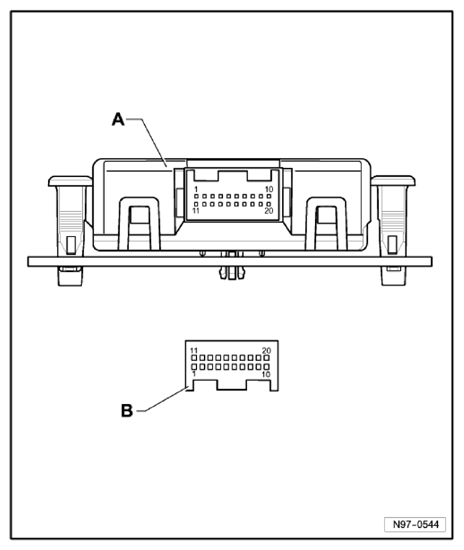

Fig 1: Data Bus On Board Diagnostic Interface Connector End View (J533, T20d)
Courtesy of AUDI OF AMERICA, LLC
A
Data Bus On Board Diagnostic Interface -J533- Connector
B
20-Pin Connector -T20d-
