Airbag Control Module Connector End View (J234, T100, T100a)

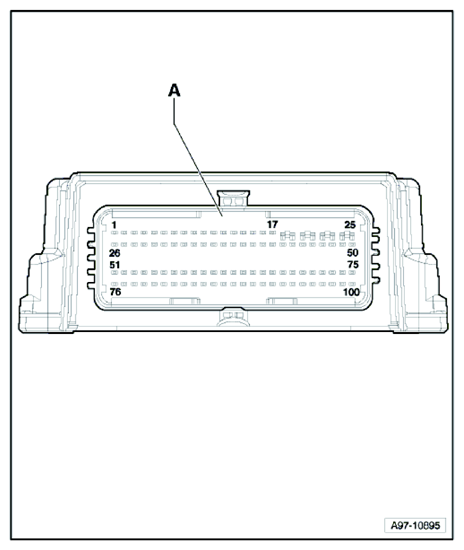

Fig 1: Airbag Control Module Connector End View (J234, T100, T100a)
G10359742Courtesy of AUDI OF AMERICA, LLC
A 100-Pin Connector-T100-
A 100-Pin Connector-T100a-
