ABS Control Module (MK70) Connector End View (J104)

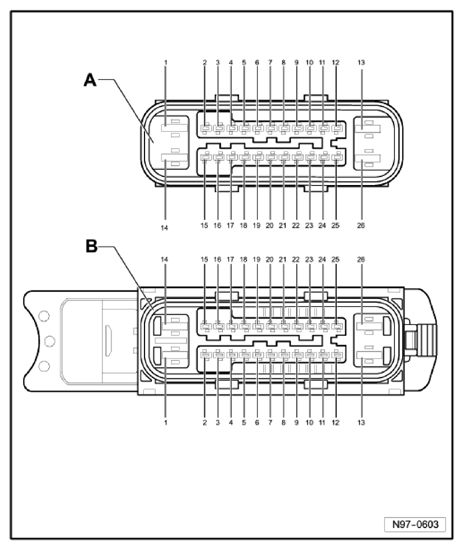

Fig 1: ABS Control Module (MK70) Connector End View (J104)
G10359723Courtesy of AUDI OF AMERICA, LLC
A ABS Control Module (MK70) -J104- Connector
B 26-Pin Connector
