Components Inside Passenger Compartment, Group 2

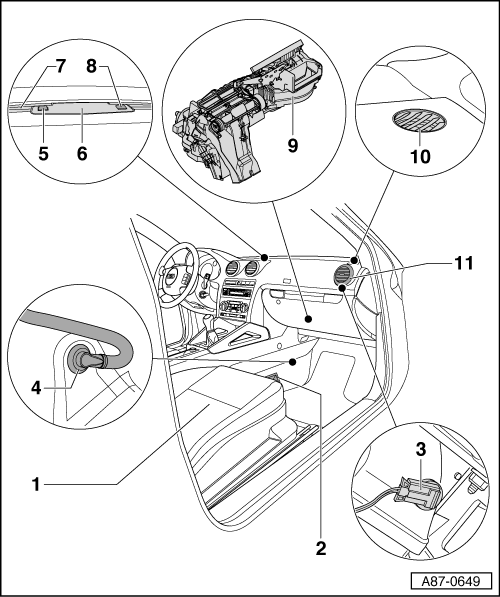

Fig 1: Components For Control And Regulation Of The A/C System In Passenger Compartment (Group 2)
GWWA87-0649Courtesy of AUDI OF AMERICA, LLC
  1. Right Front Seat Temperature Sensor -G345- and Right Front Heated Seat -Z46-
    • Seat heater is not installed in all vehicles (optional equipment).
    • Vehicles with automatically regulated A/C system: activation of seat heater is displayed in measured value block of Climatronic Control Module -J255-, check using Vehicle Diagnosis, Testing and Information System VAS 5051 in "Guided Fault Finding" function.
    • Vehicles with manually regulated A/C system: function and activation of seat heater, check using Vehicle Diagnosis, Testing and Information System VAS 5051 in "Guided Fault Finding" function.
    • Seat heating, servicing, refer to Removal and Installation .
      NOTE:

      From MY 2009, as a running change, the Climatronic control module, (or control modules for seat heating) is being installed, whereby the specified temperature is set to a lower characteristic line. Refer to Vehicle Diagnosis, Testing and Information System VAS 5051 under "Guided Fault Finding".

  2. Right Footwell Vent
  3. Right Vent Temperature Sensor -G151-
  4. Evaporator Drain Hose
  5. Sunlight Photo Sensor -G107-
  6. Cover for Loudspeaker in Center Instrument Panel
  7. Defroster Vent
  8. Light Emitting Diode for Central Locking System
  9. A/C Unit With Evaporator and Add-On Components
  10. Defroster Vent
  11. Instrument Panel Vent, Right
