Headlamp Range Control Module Connector End View (J431, T26a)
Headlamp Range Control Module Connector End View (J431, T26a)

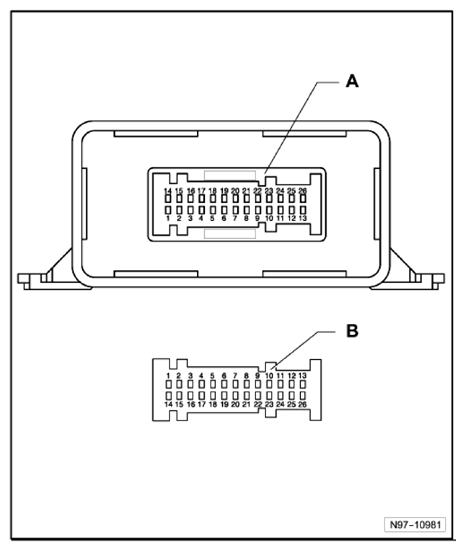

Fig 1: Headlamp Range Control Module Connector End View (J431, T26a)
Courtesy of AUDI OF AMERICA, LLC
A
Headlamp Range Control Module -J431- Connector
B
26-Pin Connector -T26a-
