Airbag Control Module Connector End View (J234, T75)
Airbag Control Module Connector End View (J234, T75)

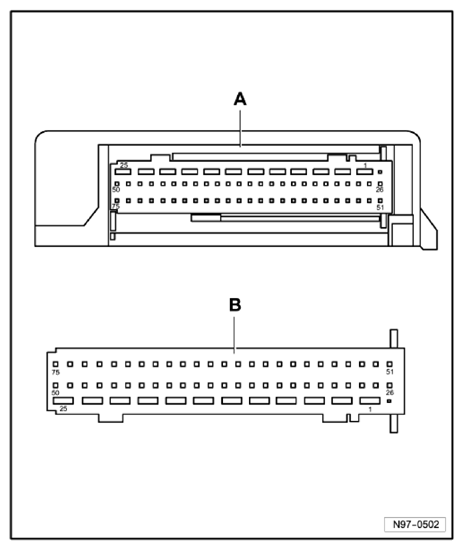

Fig 1: Airbag Control Module Connector End View (J234, T75)
Courtesy of AUDI OF AMERICA, LLC
A
Airbag Control Module -J234- Connector
B
75-Pin Connector -T75-
