Rear Window Wiper Motor Assembly Overview

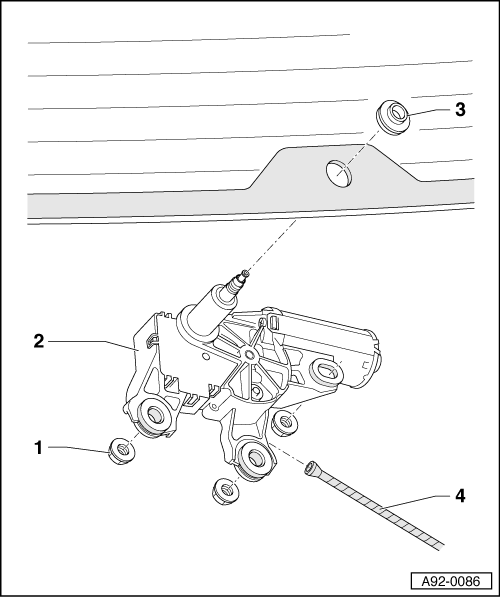

Fig 1: Rear Window Wiper Motor, Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Securing Nut
   • 8 Nm
2. Windshield Wiper Motor
   • Removing and installing, refer to REAR WINDOW WIPER MOTOR
3. Rubber Seal
4. Washer Fluid Hose
