Checking signal wire

Connect multimeter for voltage measurement as follows:

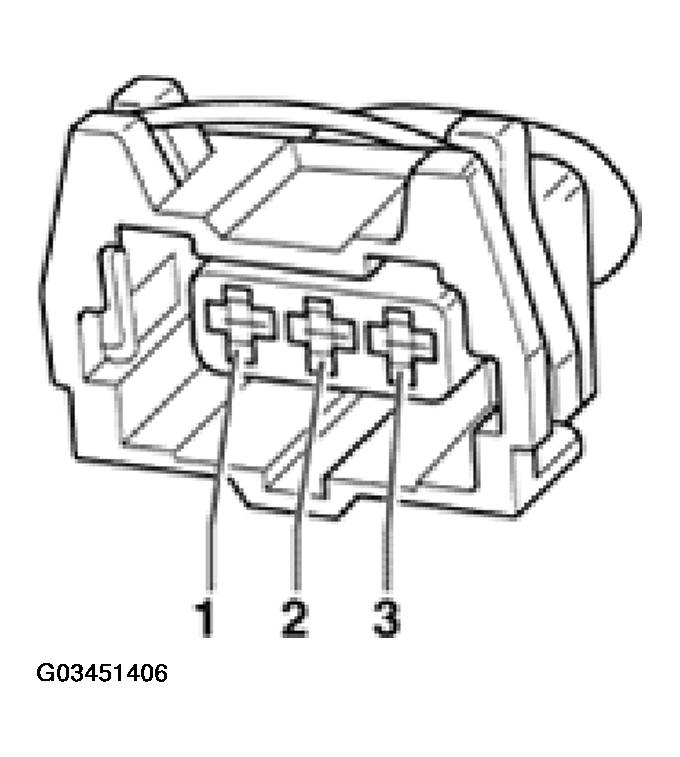

Fig 1: IIdentifying Camshaft Position Sensor Harness Connector Terminals

Courtesy of AUDI OF AMERICA, INC.

CAMSHAFT POSITION (CMP) SENSOR: TERMINAL 2 MEASURE

Harness connector Terminal	Measure to
2	Engine Ground (GND)
