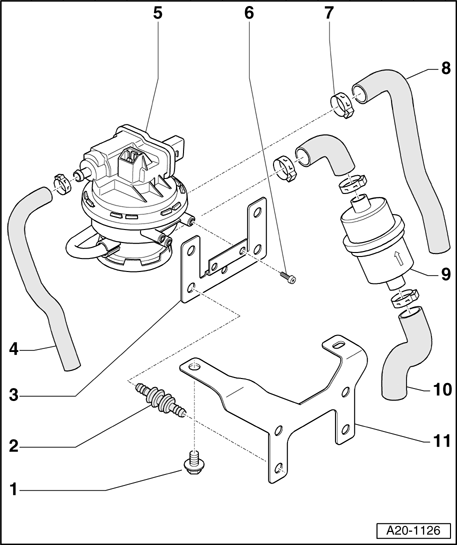

Leak Detection Pump, Component Overview

1 - 9 Nm

2 - Retaining pins

3 - Bracket

• At Leak Detection Pump (LDP)

4 - Vacuum line

• To front intake manifold

5 - Leak detection pump (LDP) V144

• Component location: In rear left wheel housing under wheel housing liner

6 - 1.2 Nm

7 - Clamp

8 - Vacuum line

• To EVAP canister

9 - Air filter

• For Leak detection pump (LDP) V144

10 - Hose

11 - Bracket

• To chassis
