Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G3 | Right side of engine compartment. See Figure . |
| G11 | Right rear of engine compartment. See Figure . |
| G12 | Left rear of engine compartment. See Figure . |

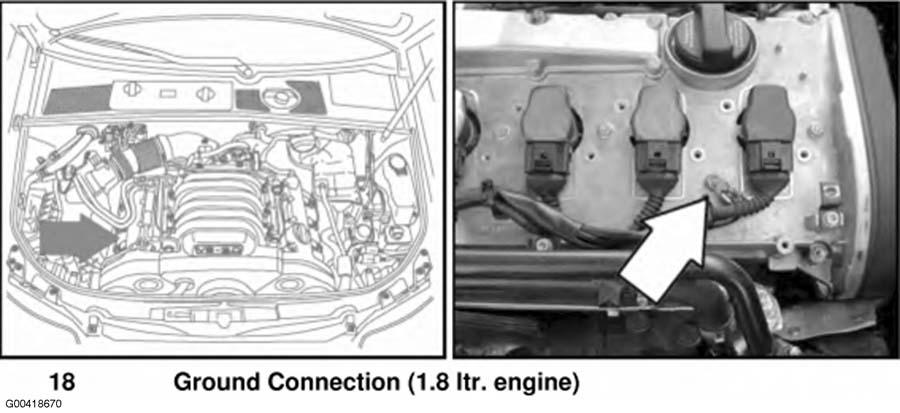

| G18 (1.8L) | Right side of engine. See Figure . |

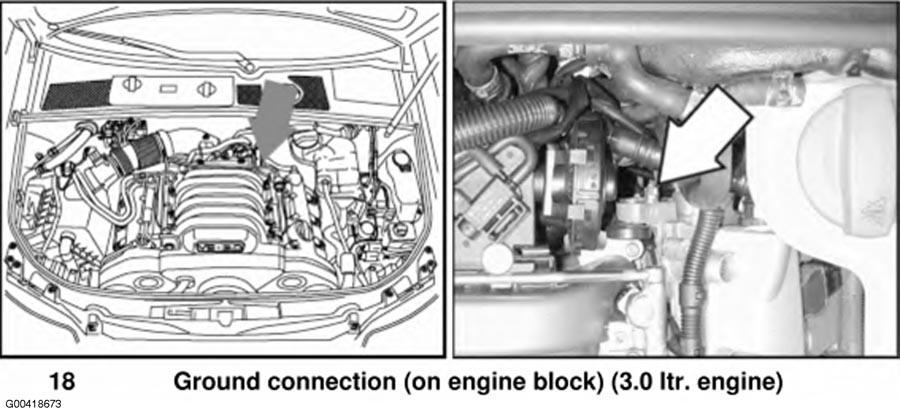

| G18 (3.0L) | Left rear of engine. See Figure . |
| G26 | Left side of engine compartment. See Figure . |
| G32 | Left kick panel. See Figure . |
| G43 | Above right kick panel. See Figure . |
| G44 | Above left kick panel. See Figure . |
| G50 | Left side of luggage compartment. See Figure . |
| G73 | Rear of roof. See Figure . |
| G77 | Left "B" pillar. See Figure . |
| G78 | Right "B" pillar. See Figure . |
| G347 | Front of center console. See Figure . |
| G610 | Under front of center console. See Figure . |
