Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module (W/EDL) | At left side of engine compartment. See Figure . |
| Air Bag Control Module | Below center console. See Figure . |
| Central Control Module (Comfort System) | Below driver's seat. See Figure . |
| Coolant FC (Fan Control) Control Module | Front of engine compartment. See Figure . |
| Door Control Module (Driver Side) | Integrated in driver's door window regulator motor. See Figure . |
| Door Control Module (Left Rear) | Integrated in left rear door window regulator motor. See Figure . |
| Door Control Module (Passenger Side ) | Integrated in right front door window regulator motor. See Figure . |
| Door Control Module (Right Rear) | Integrated in right rear door window regulator motor. See Figure . |
| Fresh Air Blower Control Module | Below right side of dash. See Figure . |
| Headlight Range Control Module | Behind right side of dash. See Figure . |
| Heated Seat Control Module (Left Rear) | Rear of center console. See Figure . |
| Heated Seat Control Module (Right Rear) | Rear of center console. See Figure . |
| Heated Windshield Control Module | Rear center of engine compartment. See Figure . |
| Instrument Cluster Control Module | Behind instrument cluster. See Figure . |
| Memory Seat Control Module | Under driver's seat. See Figure . |
| Motronic Engine Control Module (ECM) | Left rear of engine compartment, in plenum chamber. See Figure . |
| Navigation Control Module W/CD (Avant) | Left rear of cargo area. See Figure . |
| Navigation Control Module W/CD (Sedan) | Left side of trunk. See Figure . |
| Parking Aid Control Module (Avant) | Left side of cargo area. See Figure . |
| Parking Aid Control Module (Sedan) | Left side of trunk. See Figure . |
| Rear Window Shade Control Module | Under package shelf. See Figure . |
| Servotronic Control Module | At left side of dash. See Figure . |
| Steering Column Electronic Systems Control Module | On steering column, behind steering wheel. See Figure . |
| Telephone/Telematic Control Module | Under passenger's seat. See Figure . |

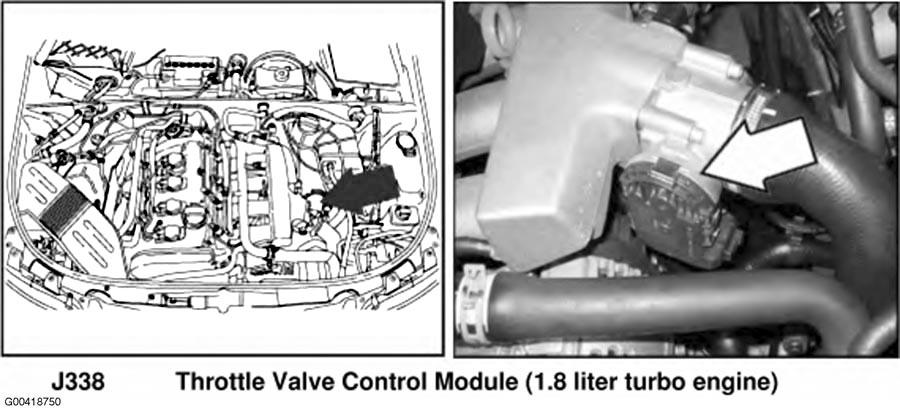

| Throttle Valve Control Module (1.8L Turbo) | On throttle body. See Figure . |
| Throttle Valve Control Module (3.0L) | Behind intake manifold, on throttle valve housing. See Figure . |
| Transmission Control Module (TCM) (CVT) | At rear of transmission. See Figure . |
| Transmission Control Module (TCM) (5 Speed A/T) | Left rear of engine compartment. See Figure . |
| Vehicle Electrical System Control Module | At left side of dash. See Figure . |
