Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188 , Checking

Special tools, testers and auxiliary items required

• Multimeter.
• Wiring diagram

Test requirement

• The Motronic Engine Control Module (ECM) J220 fuses OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".

• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.

Test procedure

• Perform a preliminary check to verify the customers complaint. Refer to → General Diagnosis .

• Release the tabs - arrows  - and remove the steering column cover.

Start diagnosis

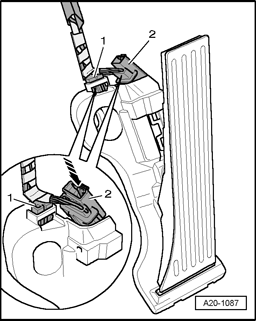

• Disconnect the Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188 electrical harness connector - 2  -.

Checking voltage supply and wiring

• Switch the ignition on.

• Using a Multimeter , check the following wiring connections for voltage.

Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188 electrical harness connector terminal	Specified value
1 to Ground (GND)	about 5 V
1 to 5	about 5 V
2 to Ground (GND)	about 5 V
2 to 3	about 5 V

• Switch the ignition off.

If the specification is not obtained:

If the manufacturers test box is being used. Perform the following step.

• Install the test box VAG1598/31. Refer to → 24 MULTIPORT FUEL INJECTION (MFI)

If the manufacturers test box is not being used. Perform the following step.

• Remove the Motronic Engine Control Module (ECM) J220. Refer to → Motronic Engine Control Module (ECM) J220, Replacing .

• Using a Multimeter , check the Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188 electrical harness connector terminals to the Motronic Engine Control Module (ECM) J220 electrical connector for resistance.

Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188 electrical harness connector terminals	Motronic Engine Control Module (ECM) J220 electrical harness connector terminals or test box socket
1	92
2	83
3	117
4	84
5	118
6	91

Specified value: 1.5 Ω max.

If the specification is not obtained:

• Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).
• Check the electrical harness connector for damage, corrosion, loose or broken terminals.
• If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring and the voltage supply was OK:

• Replace the Throttle Drive Angle Sensor 1 (for Electronic Power Control (EPC)) G187/Throttle Drive Angle Sensor 2 (for Electronic Power Control (EPC)) G188.

If no malfunction is detected in the wiring and if the voltage supply was not OK:

• Erase the DTC memory. Refer to → Diagnostic Mode 04: Reset/Delete Diagnostic Data
• Perform a road test to verify repair.

If the DTC does not return:

Repair complete, Generate readiness code. Refer to → Readiness Code .

• End diagnosis.

If the DTC does return and no malfunction is detected in the wiring and the voltage supply was OK:

• Replace the Motronic Engine Control Module (ECM) J220. Refer to → Motronic Engine Control Module (ECM) J220, Replacing .
• Assembly is performed in the reverse of the removal.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory.
2. If necessary, erase the DTC memory. Refer to Diagnostic Mode 04: Reset/Delete Diagnostic Data .
3. If the DTC memory was erased, generate readiness code. Refer to Readiness Code .

End of diagnosis
