Front Caliper (BREMBO): Disassembly

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove pads, and clean exterior surfaces.
  2. Use air pressure to force piston from cylinder. Only one piston can be pressed out at a time. Hold the opposite piston in position in the brake caliper housing using a piston resetting tool. Block the other pistons using wooden blocks. Place a wooden board in front of the piston resetting tool to prevent the piston from being damaged when being pressed out.
  3. Remove piston dust seals using Wedge (3409). See Fig 1. When removing, make sure that surface of brake caliper is not damaged.

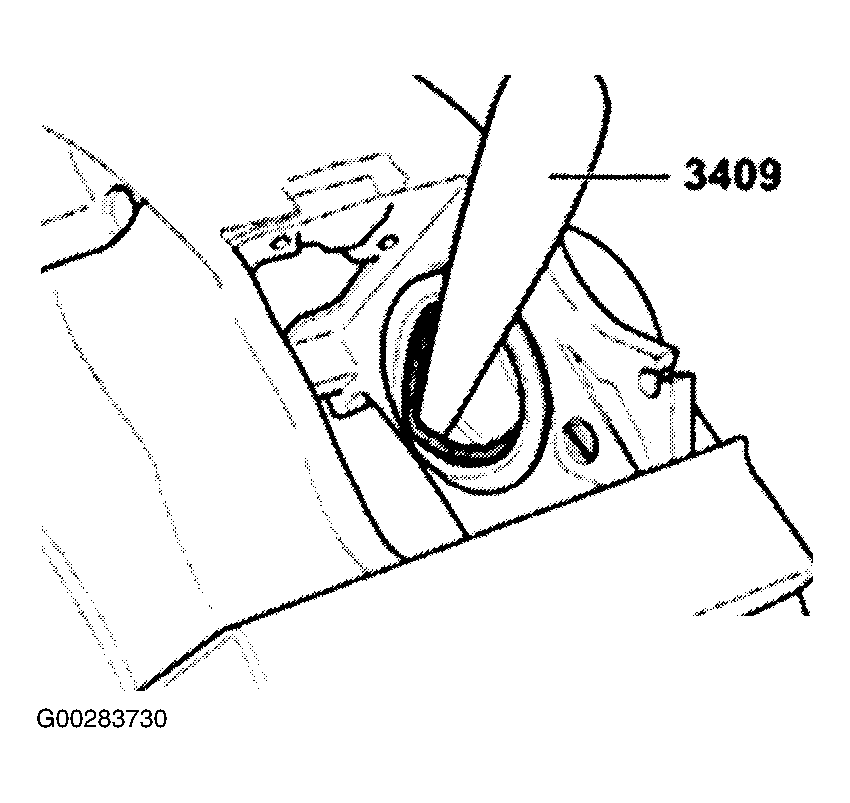

    Fig 1: Removing Piston Dust Seal (Brembo)
    G00283730Courtesy of AUDI OF AMERICA, INC.
  4. Remove piston seals using Wedge (3409). See Fig 2. When removing, make sure that surface of brake caliper is not damaged.

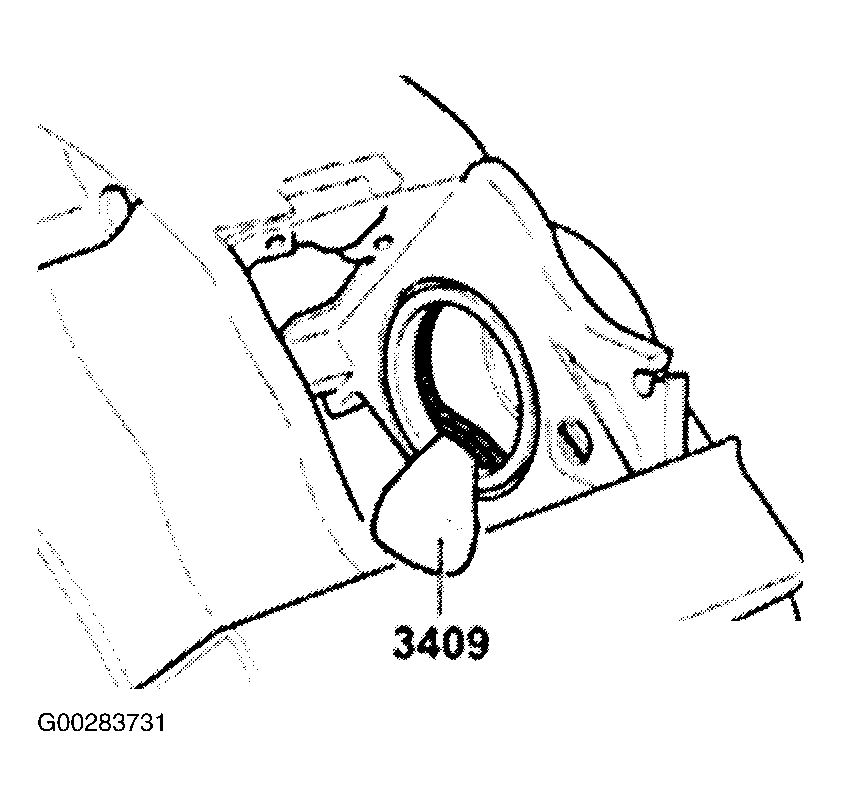

    Fig 2: Removing Piston Seals (Brembo)
    G00283731Courtesy of AUDI OF AMERICA, INC.
