Drive Belt Routing

NOTE: Serpentine belt is self-adjusting. For drive belt routing, see Fig 1.

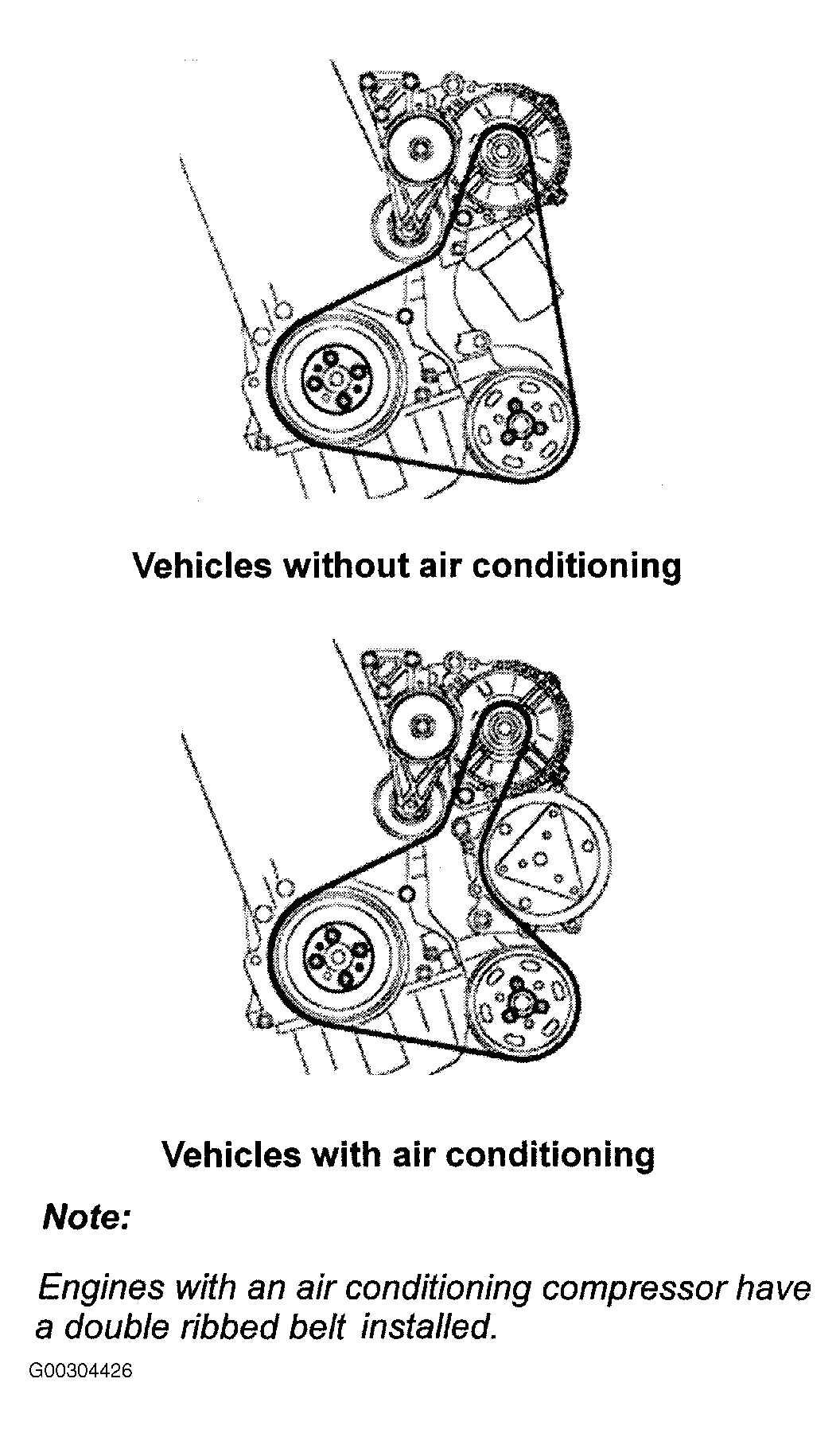

Fig 1: Drive Belt Routing (1.8L)
G00304426Courtesy of AUDI OF AMERICA, INC.

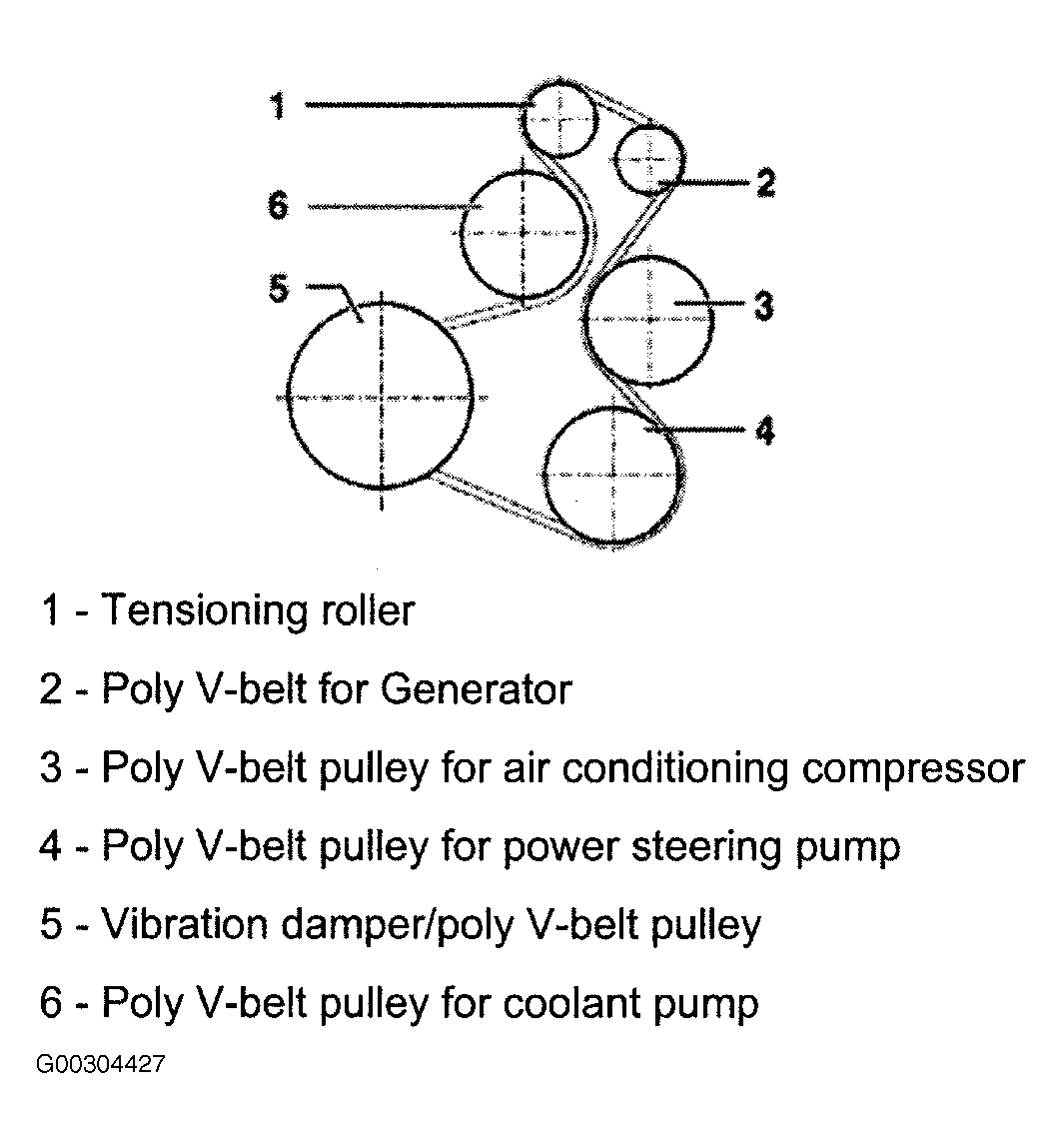

Fig 2: Drive Belt Routing (3.2L V6)
G00304427Courtesy of AUDI OF AMERICA, INC.
