Right Front Muffler, Removing and Installing

NOTE:

Before raising the vehicle on a hoist (wheels off the ground), first activate the vehicle jack mode.
→ 43 - Self Leveling Suspension

Special tools, testers and auxiliary items required

Fig 1: Chain Pipe Cutter VAS6254

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing

For vehicles with parking/auxiliary heater:

Fig 2: Identifying Exhaust Pipe Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts (- arrows -) for exhaust pipe of parking heater/auxiliary heater on noise insulation.

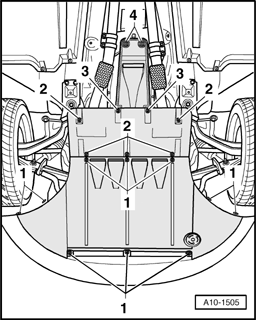

Fig 3: Front Sound Insulation Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 4: Separating Right Exhaust Pipe Using Chain Pipe Cutter VAS 6254

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Decoupling element in front exhaust pipe must not be bent more than 10 , otherwise it may be damaged.

Fig 5: Double Clamp

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 6: Left Exhaust Pipe Bracket Nuts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

NOTE:

Tightening Specifications

Threaded connection	Tightening torques
Clamping sleeve	40 Nm
