Functional check of locking cable:

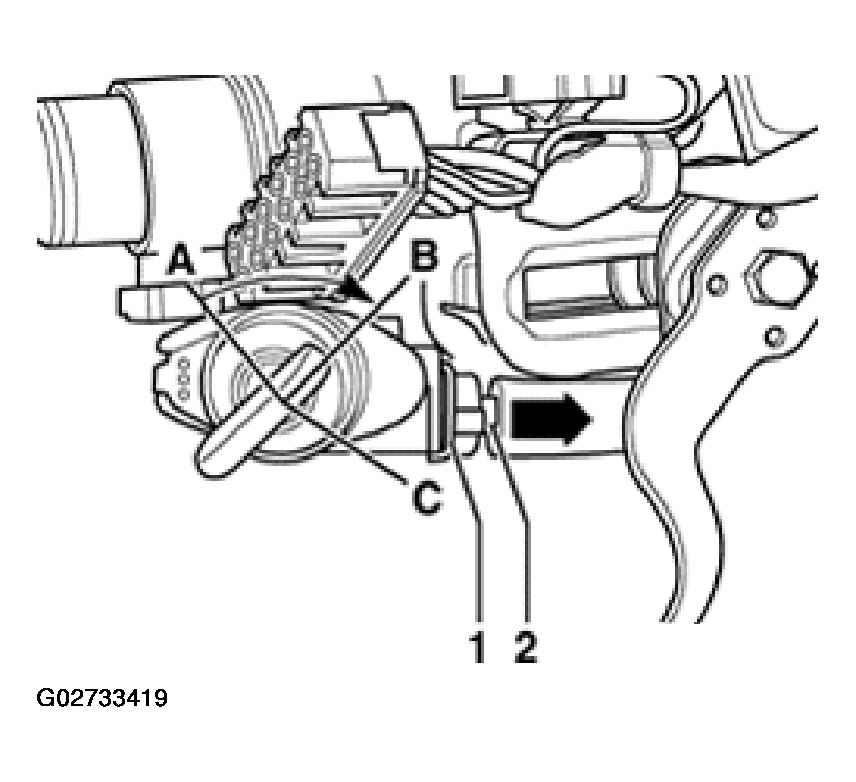

- Switch ignition key to position -B- "Ignition ON".
- It must be possible to switch selector lever out of park position without it catching.
- It must not be possible to remove ignition key with selector lever in any position other than park.
- Place selector lever in park position.
- Ignition lock must operate smoothly, without catching.
- With ignition key in position -A- "Ignition off", it must not be possible to move the selector lever out of park. The ignition key can be removed.
Basic setting and routing of locking cable
See appropriate Automatic Transmission , SERVICING article.
- Install steering column switch with trim.
- Position steering column so that gaps in trim are uniform.

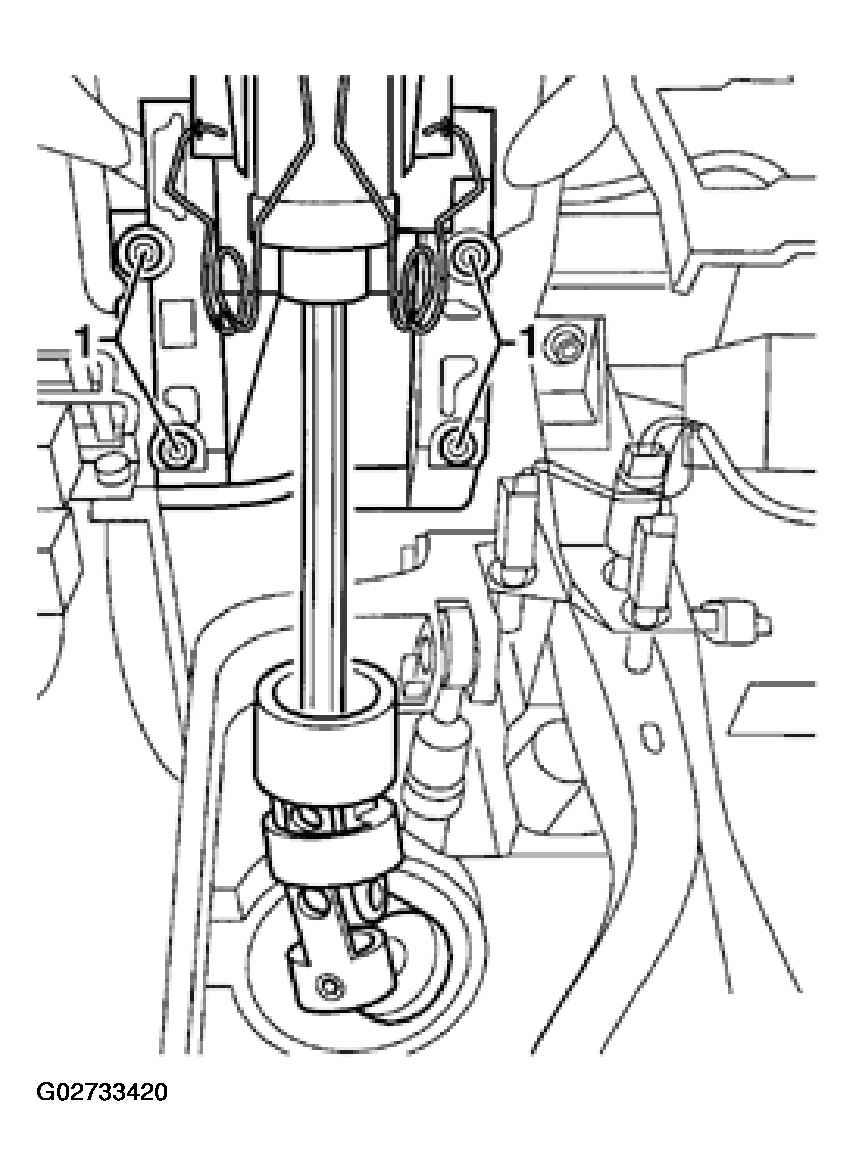

- Tighten socket head bolts -1- for steering column to 25 Nm.
